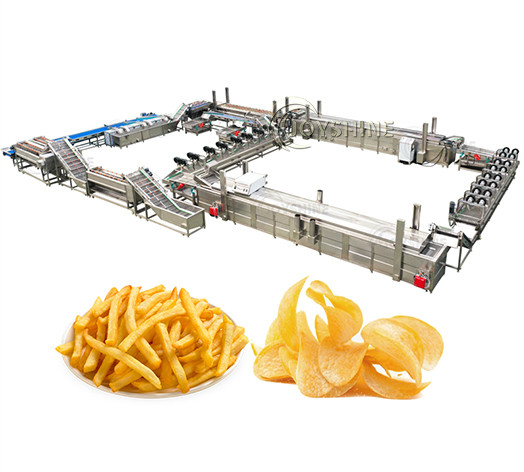

Potato Chips French Fries Production Line 200KG Frozen Chips Making Machine
| Place of Origin | Henan, China |
|---|---|
| Brand Name | JOYSHINE |
| Price | $75,000.00/sets 1-1 sets |
| Packaging Details | For New Frozen French Fries Potato Crisps Processing Machinery Production Line<br>1.Our company usually packs in standard export wooden case . <br>2. Shipping, train, express or upon clients' demands. |
| Supply Ability | 20 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops | Showroom Location | Egypt, Canada, United States, Italy, Viet Nam, Philippines, Peru, Mexico, Russia, Thailand, Morocco, Kenya, South Korea, Chile, Algeria, Romania, South Africa, Nigeria, Uzbekistan, Malaysia, Australia |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | New Product 2022 | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Voltage | 220V/380V |
| Power | 10KW | Dimension(L*W*H) | 5500*2000*2000mm |
| Weight | 200 KG | Warranty | 1 Year |
| Application Fields | Vegetable Processing Plant, Commercial Catering, Fruit Processing Plant, Frozen Food Factory | Machinery Function | Potato Chips French Fries Making Production Line |
| Raw Material | Fruit, Vegetables, Water | Output Product Name | Potato Crisps Processing Machinery |
| Key Selling Points | High Productivity | Type | Fully Automatic Processing Line |
| Capacity | 50-2000kg/h | Feature | High Efficiency Potato Chips Line |
| Item | Industrial Potatos Chips Fries | Application | Snack Food Production Line |
| Accessory | Oil Tank And Extra Oil | Heating Type | Gas Or Electric |
| After Warranty Service | Video Technical Support | Port | Shanghai, Qingdao |
| Highlight | Potato Chips French Fries Production Line,200KG French Fries Production Line,380V frozen potato production line |
||
Product Description
Products Description
We are professional direct manufacturer for potato chips or french fries making machines in China.
We have different solutions for different demands:
1: Different machines for making potato chips or french fries
2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output and workflow can be customized
3: Semi automatic or fully automatic processing machines
4: Electricity or gas, diesel heating source for blanching and frying machine.
5: The size of french fries and the thickness of potato chips are adjustable.
6: For french fries line, we have special equipment to remove the unqualified fries.
7: All machines are made of SUS304, Schneider electrical components and Siemens brand motor.
8: With special designed fryer, quick heating and energy saving, enabled good performance
Fully Automatic Frozen French Fries Production Process:
|
No.
|
Machine Name
|
Function
|
|
1
|
PVC Elevator
|
For elevating and conveying fresh potatoes into the next washing peeling machine
|
|
2
|
Potato Washing and Peeling Machine
|
Thoroughly washing and peeling the potatoes
|
|
3
|
Sorting Conveyor
|
For manually disposing the uncleaned places and selecting the defective potatoes
|
|
4
|
Fries Cutting Machine
|
Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm
|
|
5
|
Water Tank Elevator
|
water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step
|
|
6
|
Fries Sorting Machine
|
Automatically picking up the small pieces fries
|
|
7
|
Bubble Washing Machine
|
Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch
|
|
8
|
Blanching Machine
|
Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries
|
|
9
|
Vibration Dewatering Machine
|
Through vibration to remove the surface water and also to transport the fries uniformly to the next machine
|
|
10
|
Air Drying Machine
|
Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon
|
|
11
|
Elevating Conveyor
|
For elevating and conveying the fries into next fryer machine
|
|
12
|
Continuous Frying Machine
|
For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life
|
|
13
|
Vibration Deoiling Machine
|
Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine
|
|
14
|
Pre-cooling Machine
|
Through high pressure wind blowing for pre-cooling and deoiling the fries
|
|
15
|
Freezing Machine
|
Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF
|
|
16
|
Automatic Packing Machine
|
For packing the finished frozen french fries
|
Detailed Description
PVC Elevator for Fresh Potatoes
Potato Washing Peeling Machine
Unqualitied Potato Sorting Conveyor
Potato Cutter
fries cutting chips slicing
Water Tank Elevator
Fries Sorting Machine
Bubble Washing Machine
Blanching Machine
Vibration Dewatering Machine
Air Drying Machine
Elevator Conveyor
Continuous Fryer Machine
Vibration Deoiling Machine
Air Cooling Machine
IQF Freezing Tunnel
Automatic Weighing and Packing Machine
Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!
About Us
We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.
Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Our company's productivity can meet the stock of spot products. One of the independent warehouses has an area of more than 2000 square meters, and we can quickly supply customers with machine sets, for production lines.
Certifications
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
FAQ
|
What's the applicable materials:
|
Root vegetables or fruits.
|
|
|
|
|||
|
Serving life of blades:
|
1-2 years
|
|
|
|
|||
|
Date of delivery:
|
5-7 working days
|
|
|
|
|||
|
Voltage:
|
Customize according to the needs of different countries.
|
|
|
|
|||
|
Payment Tems:
|
T/T,Alibaba Trade assurance,L/C,WU,PayPal,Alipay,WeChatPay.
|
|
|
|
|||
|
Packing:
|
Exporting standard fumigation wooden box.
|
|
|
|
|||
|
Transportation:
|
Shipping by express, air, railway and sea.
|
|
|
|
|||
|
Warranty:
|
2 years
|
|
|
|
|||
|
OEM:
|
Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc.
|
|
|
|
|||
