SUS304 Stainless Steel Bubble Vegetable Washing Machine For Carrots Potatoes Ginger Apples
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Certification | CE & ISO |
| Model Number | JS-QPQX-4000 |
| Price | $6,000.00/sets 1-2 sets |
| Packaging Details | standard export wooden case |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | None | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Hot Product 2019 |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Motor, Pump |
| Voltage | 220v/380v | Power | 8.3kw |
| Dimension(L*W*H) | 5000*1200*1300mm | Weight | 800 KG |
| Warranty | 2 Years | Application Fields | Snack Food Factory, Commercial Catering, Meat Processing Plants, Fruit Processing Plant, Vegetable Processing Plant |
| Machinery Function | Washing | Raw Material | Fruit, Vegetables, Nuts, Soybean |
| Key Selling Points | Easy To Operate | Name | Bubble Washing Machine |
| Function | Multifunctional | Material | SUS304 Stainless Steel |
| MOQ | 1set | Speed | Frequency Converter |
| Package | Standard Wooden Case | Working Principle | Air Bubble Spray Washing Machine |
| Advantage | Water Recycle | Feature | Easy Operation |
| Highlight | Bubble Vegetable Washing Machine,SUS304 Vegetable Washing Machine,Carrots fruit vegetable washing machine |
||
Product Description
Product Description

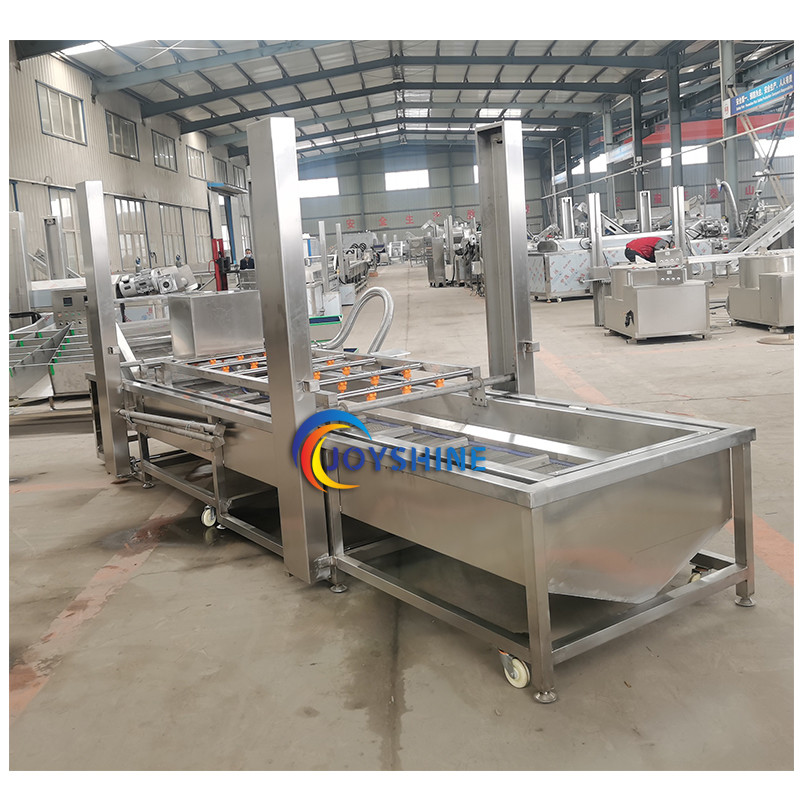

New Designed Fruit and Vegetable Carrot Potato Ginger Apple Bubble Washing Machine with Automatic Belt Lifting System
This ultrasonic vegetable and fruit washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
Working Principle
This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
Features:
|
1
|
Equipped with a bubble generator to make the objects roll over
High pressure air bubble and spraying water can wash off dirt, sands and other residues
|
|
2
|
Equipped with VFD to better adjust the belt speed
|
|
3
|
Equipped with separate filter tank and water recycling system
|
|
4
|
Equipped with spraying section with clean water for twice washing
The objects are automatically conveyored to spraying section by the conveyor mesh belt
|
Advantages:
|
1
|
Food grade SUS304 stainless steel
|
|
2
|
High cleaning ability, high washing rate
|
|
3
|
Wide range application, suitable for many products
|
|
4
|
No damage to the products
|
Optional Function
According to the customers' special requirements, there are following optional configurations:
|
1
|
Ozone generator for sterilization and disinfection and decomposition of pesticide residues
|
|
2
|
Ultrasonic module through ultrasonic vibration to clean the products completely
|
|
3
|
Air fans to be added at the outlet for simple frying after washing
|
|
4
|
Lifting device can be added to life the mesh belt for easy cleaning of the tank
|
|
5
|
Any other functions you need, tell us freely, we will design special machine for you
|
Detailed Images

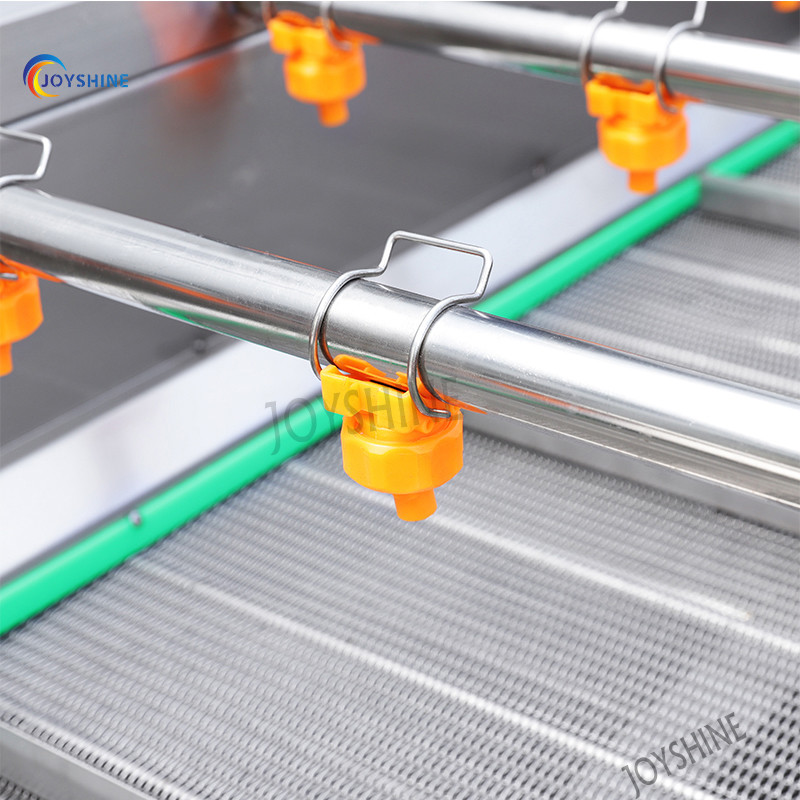

Spray Nozzle
Overflow Gap

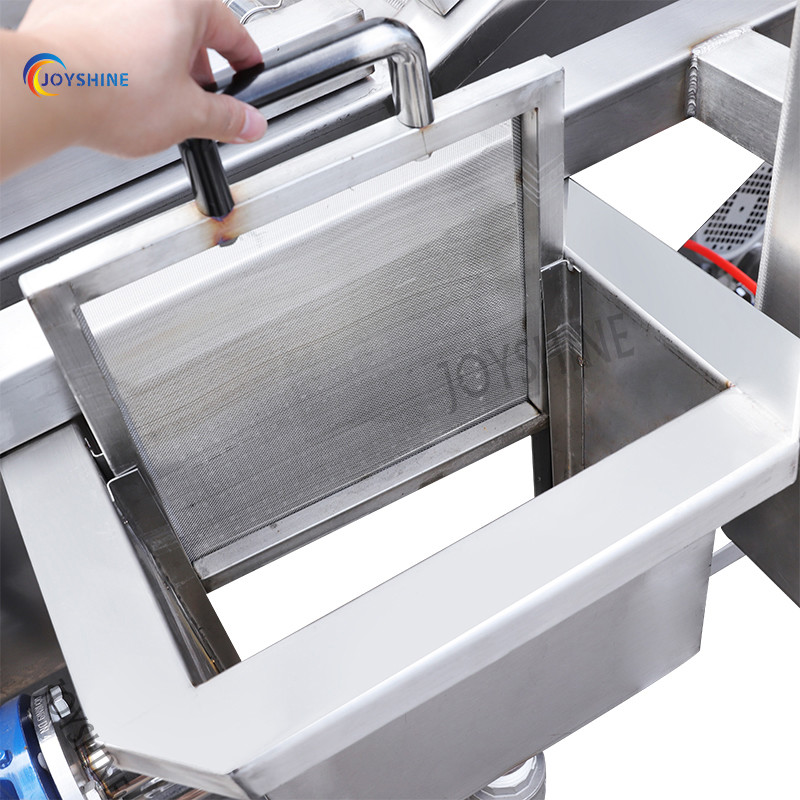

Filter Tank
Waste Water Outlet
Twice Spraying Section
Sealing Strips
Control Panel

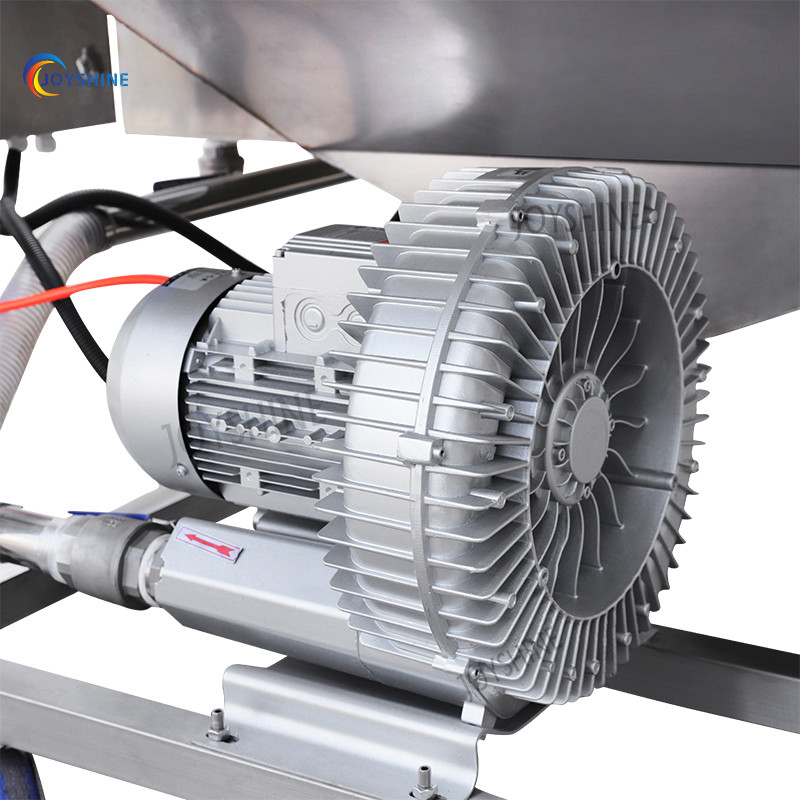

Vortex Blower
Application
Parameters
|
Model
|
Dimension
|
Weight
|
Power
|
Capacity
|
|
JS-QP-2500
|
2500*1000*1300mm
|
400kg
|
4.45kw
|
500kg/h
|
|
JS-QP-3000
|
3000*1200*1300mm
|
600kg
|
5.25kw
|
800kg/h
|
|
JS-QP-4000
|
4000*1200*1300mm
|
700kg
|
6.6kw
|
1000kg/h
|
|
JS-QP-5000
|
5000*1200*1300mm
|
900kg
|
8.3kw
|
1500kg/h
|
|
JS-QP-6000
|
6000*1200*1300mm
|
1100kg
|
9.4kw
|
2000kg/h
|
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements

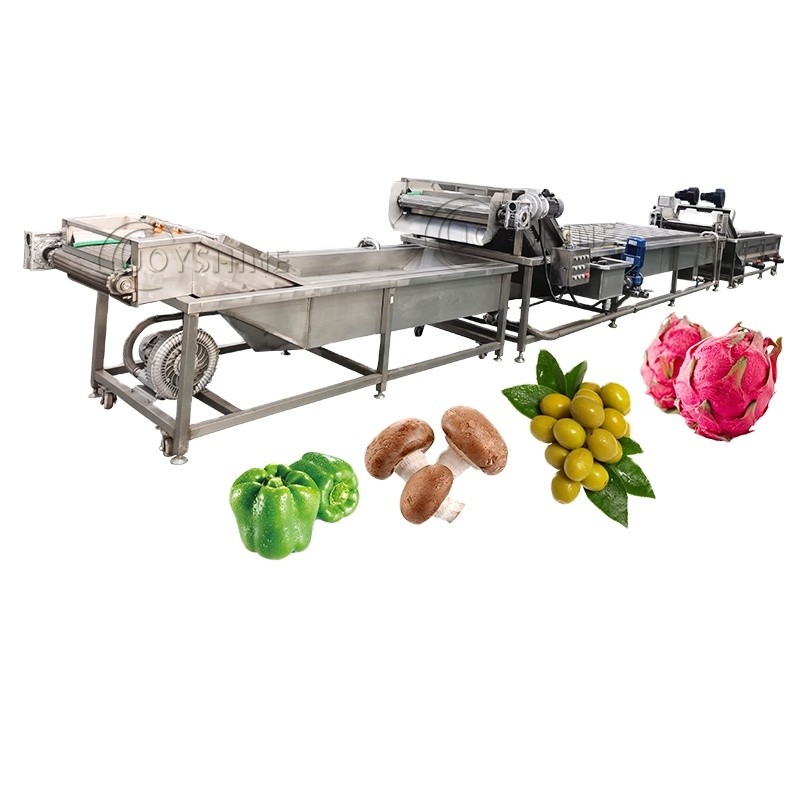

This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
Our Company
FAQ
|
Voltage:
|
We normally make it 220v/50Hz/single phase or 380v/50Hz/three phases.
But it can be made according to your demand, like 110v/60Hz/single phase, or 415v/50Hz/3 phases etc
|
|
|
|
|||
|
Payment Terms:
|
T/T, Alibaba Trade Assurance, Western Union, PayPal, Alipay, WechatPay, L/C
|
|
|
|
|||
|
Lead Time:
|
7-10 working days after deposit
|
|
|
|
|||
|
Packing:
|
For LCL, we use export standard fumigation wooden case
For FCL, sometimes no packing
|
|
|
|
|||
|
Shipping:
|
Shipping by express, air, railway or sea
|
|
|
|
|||
|
Warranty:
|
We promise one year guarantee for non-human damage factor
|
|
|
|
|||
|
Spare Parts:
|
If you want to change some parts after long time using, feel free to contact us
We keep whole life spare parts supply
|
|
|
|
|||
