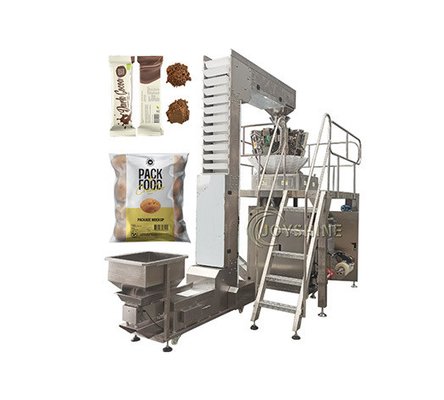

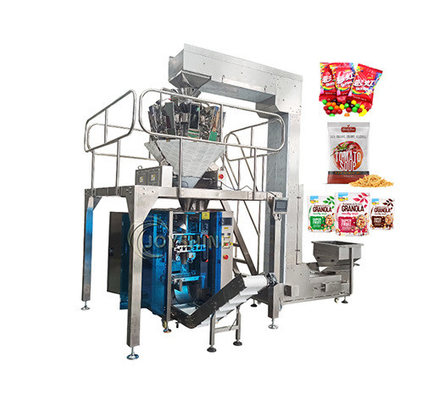

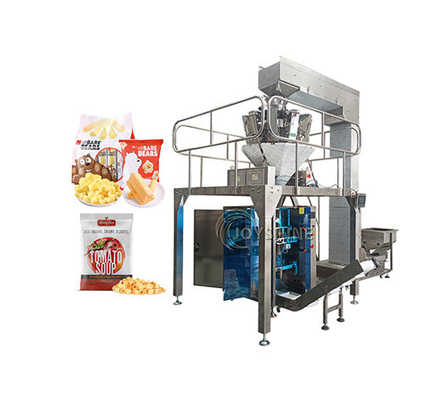

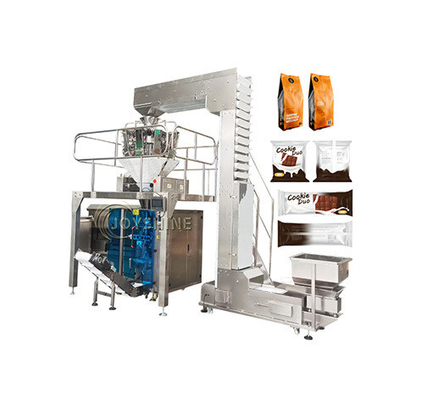

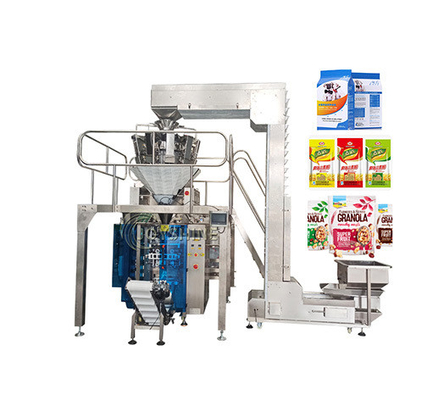

Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
  • Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
Place of Origin Shandong, China
Brand Name Joyshine
Price $26,000.00/sets 1-2 sets
Packaging Details Wooden case
Supply Ability 100 Set/Sets per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Production Capacity Customized Weight (KG) 200
Function FILLING, Sealing, Auto-Weight-Form-Fill-Seal Application Food, Commodity, Machinery & Hardware
Packaging Type Stand-up Pouch, Bags, Film, Pouch Packaging Material Plastic, Paper
Automatic Grade Automatic Driven Type Pneumatic
Voltage 220V/50Hz Dimension(L*W*H) 1780*1350*2000mm
Warranty 2 Years Key Selling Points Multifunctional
Machinery Test Report Provided Video Outgoing-inspection Provided
Core Components Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox Product Name Potato Chips Making Machine
Bag Type Pillow Bag/Gusset Bag Bag Length 100-420mm
Bag Width 110-350mm Max Film Width 720mm
Film Thickness 0.04-0.10mm Film Material POPP CPP VMCPP BOPP PE PET AL NY
Machine Material Stainless Steel SUS 304 Usage Food Snack
Product Keywords Packing Machine Equipment Type Multi-Function Packaging Machine
Applicable Industries Food & Beverage Factory, Retail, Printing Shops, Food & Beverage Shops, Advertising Company Showroom Location Nigeria
Condition New Warranty Of Core Components 2 Years
Port Qinghdao
Leave a Message
Product Description
Product Description
Model
HS-320A
HS-398A
HS-420A
HS-520A
HS-720A

Packing size
W:50-150mm
W:70-200mm
W:80-200mm
W:90-250mm
W:110-350mm
L:50-200mm
L:50-300mm
L:50-300mm
L:80-350mm
L:100-420mm
Packing speed
20-60 bag/min
10-60 bag/min
15-80 bag/min
30-80 bag/min
10-60 bag/min
Range of measuring
700ml
150-1500ml
150-1500ml
Max 1500ml
Max 4000ml
The max width of packing film
320mm
420mm
420mm
520mm
720mm
Air consumption
200L/min
0.6MPa
200L/min
0.6MPa
200L/min 0.6MPa
200L/min 0.6MPa
300L/min 0.8MPa
Main power/voltage
2.7KW/220V
50-60Hz
2.5KW/220V
50-60Hz
2.2KW/220V 50-60Hz
2.2KW/220V 50-60Hz
4.0KW/220V 50-60Hz
Main power/voltage
350KG
450KG
450KG
450KG
800KG
Dimension
(L)1100* (W)800*(H)1940mm
(L)1400*(W)970*(H)1700mm
(L)1400*(W)970*(H)1700mm
(L)1480* (W)1200*(H)1700mm
(L)1780*(W)1350*(H)2000mm
Film thickness
0.04-0.10mm
Bag making mode
Pillow-type bag, Standing bag, punching device,Link-bag device
Bag making mode
POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 0
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 1
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 2
Product Details
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 3

Technical parameter Packing speed:Max 30 bag/min Bag size Front width:100-180mm Side width:65-120mm Width of side seal:100-180mm Length:100-420mm Bag making mode:Block boottom type The maximum width of packing film:720mm Main power/voltage:4.5KW/220V 50-60Hz Dimension:1700×1420×2100mm The weight of switchboard:900kg
Multi head weighing machine
Each dump weighing range: 10-1000g Combination capacity: 3000ml Max speed 60 bags/min
Length of material: Max 80mm Each bag error: 0.2-0.5g Weighing accuracy: 0.1-1g Mode of driving Step motor: Form of dipper Double-row non-memory dippers Power source: Ac200/220V±10% 1.5KVA Dimension : 950(L) * 950(W) *1000(H)mm Preset function Max 50 choices Level control Photo-electricity (passtype)
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 4
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 5

Z type bucket conveyor
Discharge height: 2 to 8m (To be customized refer to the requirements) Power: 750W (3.1m) Capacity: 2.5 to 8CBM/hr Electric Supply: 380V,50/60Hz, 3ph or 220V, 50/60Hz,1 ph Conveyor Frame: Painted Mild Steel or Full 304# Stainless Steel

Supporting Platform

Made of 304 stainless steel
Ensuring stable operation of multihead weighers
Adopting imported miniature motor and featured with low noise and long tifetime.
It can transport finished goods to platform, reduce waste duringpacking, making the machine work more smoothly.
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 6
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 7

HS-B Type Finished product conveyor

Conveyor width: 300mm
Conveyor height: 0.8-1.5m
Conveyor speed: 30m/min
Frame Material: 304SS
Power: 120W /220V
Product Application
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 8
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 9
About Us
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 10
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 11
Certifications
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 12
Product packaging
Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit 13
FAQ
Q: Are you manufacturer? A: Yes, we are manufacturer with more than 10 year's experience. Q: Can you ship the machine to my address? A: Yes, we arrange to ship the machine by sea to your nearest port. Where you are east to do the import customs cleanrance. Q: About the machine voltage or power of machine? A: Usually in our country is 220v-50hz single phase or 380v-50hz 3 phase. If you have the special requirement, pls tell us. We will vetify the voltage according to your requirement. Q: How to install the machine? A: We can intrust the install the machine by vedio, email, picture etc. Q: Can you offer us the necessary paper to do the customs clearance? A: Yes, of course. We will send you the commercial invoice, packing list, bill of lading, insurance policy. Q: Where are you? Can we go to China and visit your factory? A: Yes, of course. We are in Zhengzhou, Henan, China. Welcome to our factory.
