Scale: workshop 15000㎡, 10 production lines.
All Products
110-350mm Bag Width Onion Vaccum Packing Machine For Fruits And Vegetables
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Price | $26,000.00/sets 1-2 sets |
| Packaging Details | Wooden case |
| Supply Ability | 100 Set/Sets per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Capacity | 20bag/min | Weight (KG) | 200 |
|---|---|---|---|
| Function | FILLING, Sealing, Auto-Weight-Form-Fill-Seal | Application | Food, Commodity, Machinery & Hardware |
| Packaging Type | Stand-up Pouch, Bags, Film, Pouch | Packaging Material | Plastic, Paper |
| Automatic Grade | Automatic | Driven Type | Pneumatic |
| Voltage | 220V/50Hz | Dimension(L*W*H) | 1780*1350*2000mm |
| Warranty | 2 Years | Key Selling Points | Multifunctional |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox | Product Name | Potato Chips Making Machine |
| Bag Type | Pillow Bag/Gusset Bag | Bag Length | 100-420mm |
| Bag Width | 110-350mm | Max Film Width | 720mm |
| Film Thickness | 0.04-0.10mm | Film Material | POPP CPP VMCPP BOPP PE PET AL NY |
| Machine Material | Stainless Steel SUS 304 | Usage | Food Snack |
| Product Keywords | Packing Machine Equipment | Type | Multi-Function Packaging Machine |
| Applicable Industries | Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops | Showroom Location | Nigeria |
| Condition | New | Marketing Type | New Product 2020 |
| Warranty Of Core Components | 2 Years | Port | Qinghdao |
| Highlight | 350mm vacuum packing machine,Onion vacuum packing machine,Vegetables commercial vacuum packer |
||
Product Description
Products Description
Joyshine Multifunction Fresh Vegetables Packing Machine Frozen Snack Packing Machine For Vegetable
Detailed Images

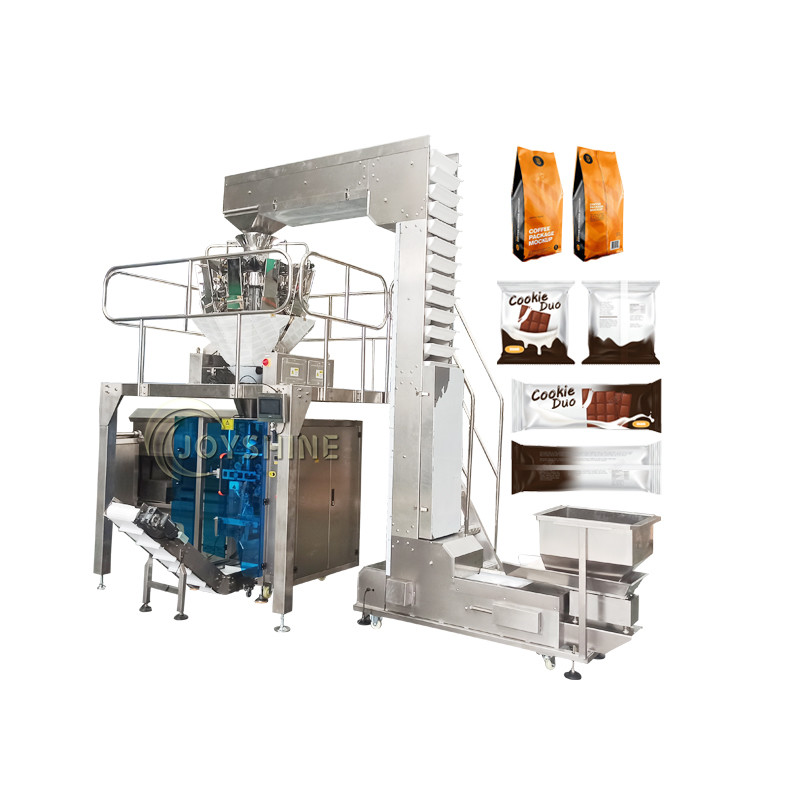

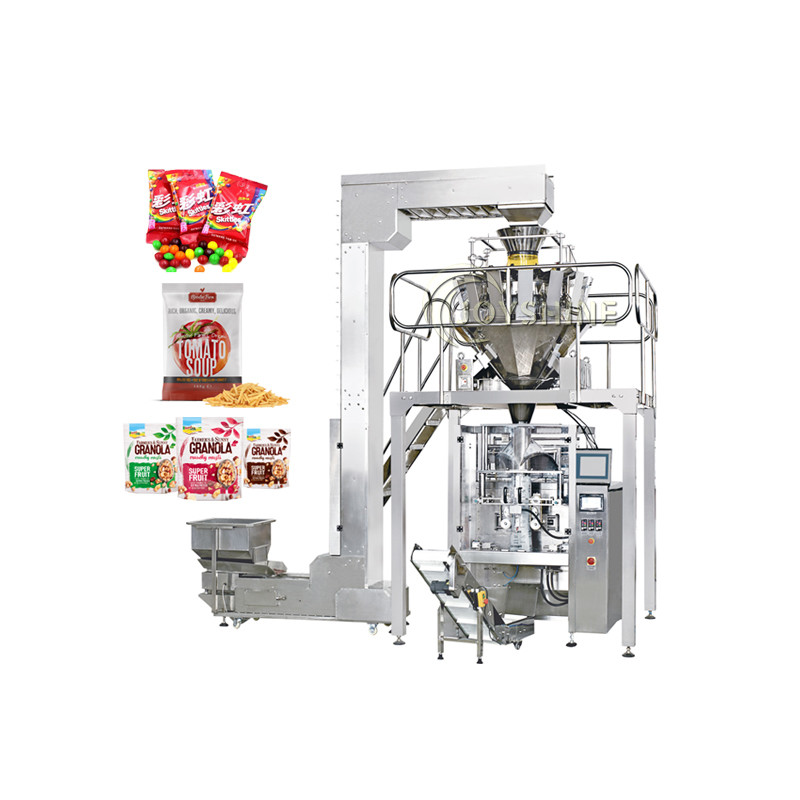

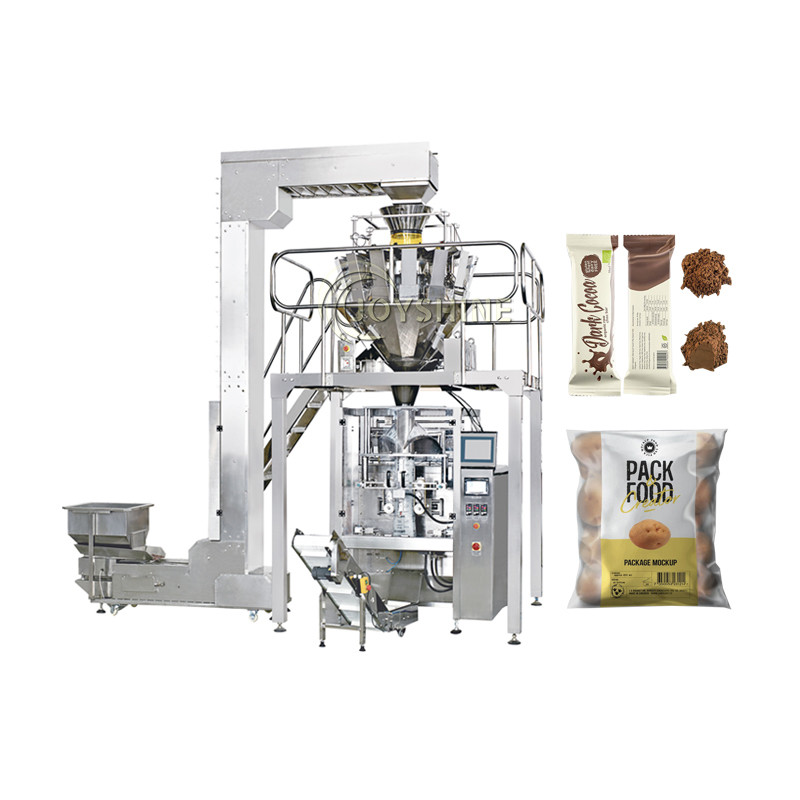

Vertical Packing Machine
Packing Speed:10-80 bags/min
PLC control With touch panel-step by step instruction the perfect automatic alarm safety protection, little waste.
The machine will automatically complete all packing processes from feeding, measuring, filling, printing, finished bag.
Ten/Fourteen Heads Weigher
Driving System:Step Motor
Stainless steel, welding, rounded corners and the least amount of dust modular control system, easy maintenance, low cost professional digital weighing module, better stability and high precision control weighing feeding function in order, avoid the material jam separate adjusting amplitude, operation more convenient, multilingual operating system.
Z Type Conveyor
Lifting Height: 2.3-8m (according to custormer's requires)
It's suitable with the character of large quantity:No crash material. High lifting etc.
Voltage: AC380V/220V/750W
It can be made both stainless steel and plastic painted.
The contact parts of food grade plastic.
Conveyor speed: 2.5T/hour 2L Hopper 3-8T/Hour 4L Hopper
A Type Out Put Conveyor
Packaging Speed: 30m/minutes
This conveyor mainly delivers the packaging bags completed by the packaging machine to the location desired by the customer.
Voltage: 220V/120W
Product Paramenters
|
Item
|
Content
|
|
Packing speed
|
10-50 bags/min
|
|
Bag Size
|
W:110-350mm L:100-420mm
|
|
Range of measuring
|
Max 4000ml
|
|
The max width of packing film
|
720mm
|
|
Film material
|
POPP/CPP, POPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET etc.
|
|
Air consumption
|
0.04-0.10 mm
|
|
Main power/voltage
|
4KW/220V 50-60Hz
|
|
Dimension
|
(L)1780*(W)1350*(H)2000mm
|
|
The weight of switchboard
|
800kg
|
Application
The Application Materials
It's suitable to ues in packing the high accuracy and easy fragile material, such as: piffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling chocolate, pet food, small hard wares, medicine etc.
Related Products
About Us

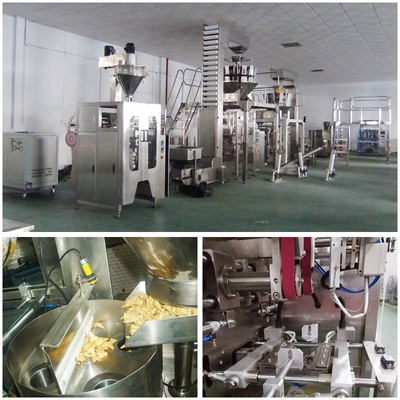

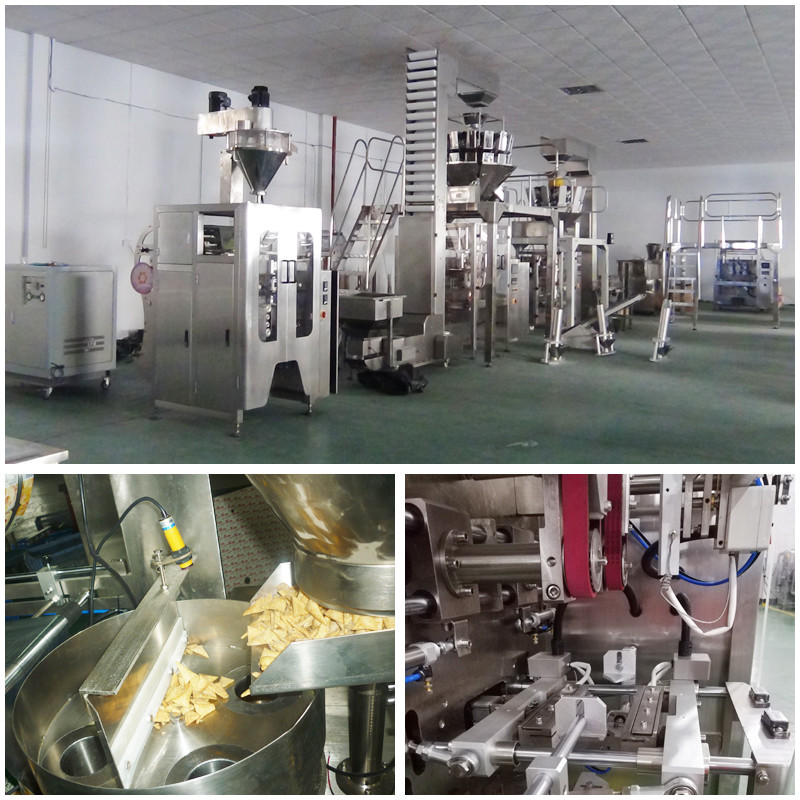

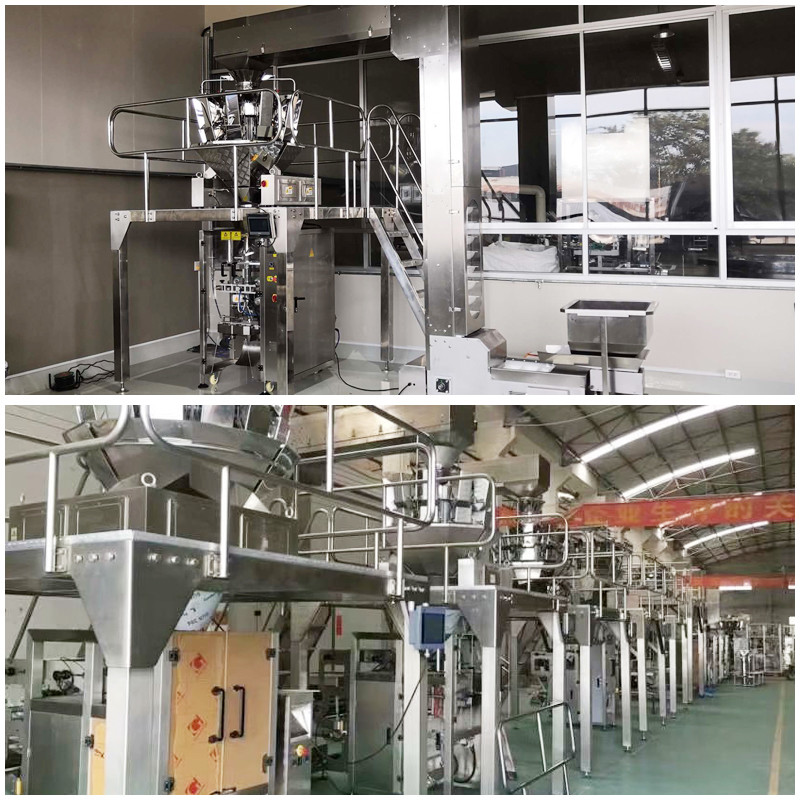

Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine,electric welding machine, gantry crane, drilling equipment.
Our company's productivity can meet the stock of spot products. One of the independent warehouses has an area of more than 2000 square meters, and we can quickly supply customers with machine sets, for production lines.
FAQ
|
Q: Are you manufacturer?
|
|
A: Yes, we are manufacturer with more than 10 year's experience.
|
|
Q: Can you ship the machine to my address?
|
|
A: Yes, we arrange to ship the machine by sea to your nearest port. Where you are east to do the import customs cleanrance.
|
|
Q: About the machine voltage or power of machine?
|
|
A: Usually in our country is 220v-50hz single phase or 380v-50hz 3 phase. If you have the special requirement, pls tell us. We will vetify the voltage according to your requirement.
|
|
Q: How to install the machine?
|
|
A: We can intrust the install the machine by vedio, email, picture etc.
|
|
Q: Can you offer us the necessary paper to do the customs clearance?
|
|
A: Yes, of course. We will send you the commercial invoice, packing list, bill of lading, insurance policy.
|
|
Q: Where are you? Can we go to China and visit your factory?
|
|
A: Yes, of course. We are in Zhengzhou, Henan, China. Welcome to our factory.
|
