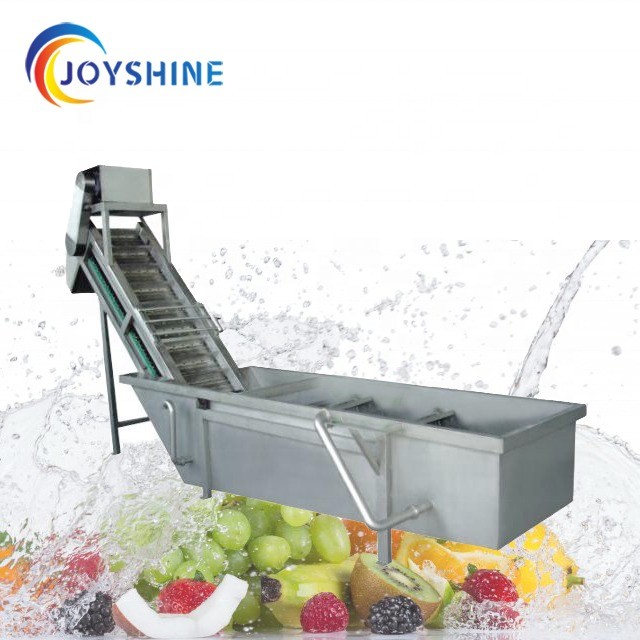

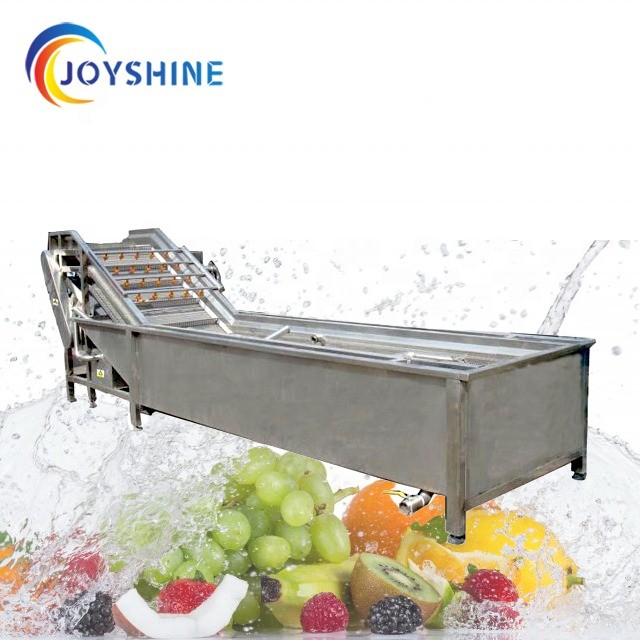

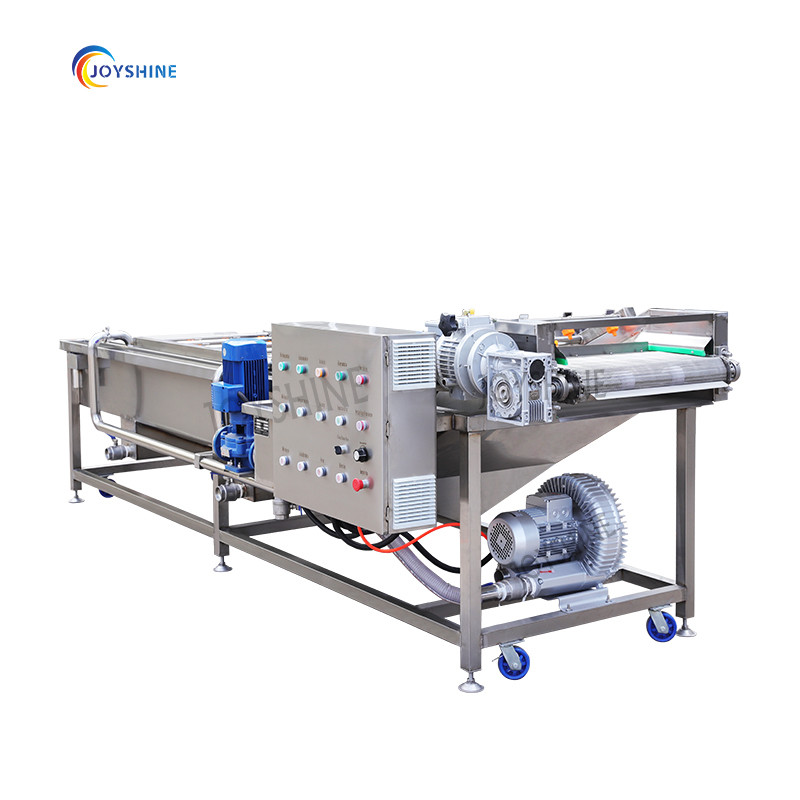

Tomato Washing Machine With Water Filtration System 304 Stainelss Steel Material
| Place of Origin | Henan, China |
|---|---|
| Brand Name | JOYSHINE |
| Certification | CE, ISO |
| Model Number | JS-QPQX-2500 |
| Price | $3,500.00/sets |
| Packaging Details | Export standard wooden package of tomato washing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Food & Beverage Factory, Farms, Home Use, Food Shop, Food & Beverage Shops | Voltage | 380v/220/cutomization |
|---|---|---|---|
| Power | 5kw | Dimension(L*W*H) | 2500*800*1400mm |
| Weight | 500kg | Warranty | 2 Years |
| Application Fields | Snack Food Factory, Commercial Catering, Flour Mill, Meat Processing Plants, Dairy Products Factory, Fruit Processing Plant, Cooking Oil Factory, Winery, Bakery, Vegetable Processing Plant, Cannery, Beverage Factory, Seasoning Plant, Frozen Food Factory | Machinery Function | Washing Fruit&vegetable |
| Raw Material | Corn, Fruit, Vegetables, Wheat, Nuts, Soybean | Output Product Name | Fruit&vegetable |
| After-sales Service Provided | Field Installation, Commissioning And Training, Overseas Third-party Support Available | Machine Name | Tomato Washing Machine |
| Usage | Washing Fruits And Vegetables | Washing Capacity | 200kg/h To Up, Receive Customization |
| Machine Material | 304 Stainelss Steel | Washing Advantage | Adopt High Pressure Washing |
| Water Cycle System | Yes | Water Filtration System | Yes |
| Motor Quality | Siemens Motor | Package | Export Standard Wooden Case |
| Highlight | 200kg/h Fruit Grading Machine,380v Fruit Grading Machine,220v fruit grader |
||
Product Description
automatic front loading washing machine tomato washing machine
The description of tomato washing machine
| 1 | The bubble type washing machine with top water spraying for various fruits and vegetables is designed for the raw material for different shapes. |
| 2 | High airflow mixed water washes the raw material to avoid colliding with each other. The materials are washed by the high pressure water, intensity, high effectively, and continuous operations. |
| 3 | It is an indispensable washing device for the fruit and vegetable or seafood processing before quick freezing. |
| 4 | Complete unit is made of 304 stainless steel, Portion water recycling and stepless speed regulation. |
Material Description of tomato washing machine
| 1 | The whole machine is made of 304 stainless steel. |
| 2 | The tank is made of the stainless plate of high quality with the thickness of 1.5mm |
| 3 | Conveyor belt is made of stainless chain and stainless mesh belt |
| 4 | Protect plate is made of the stainless plate and punching plate with the thickness of 1.5mm |
| 5 | Frame is made of 50*50*1.5 and 40*40*1.5 stainless square pipe |
Technical parameter
The parameter of tomato washing machine
| Model | Dimension | Weight | Power | Capacity |
| JS-QPQX-2500 | 2500*1200*1300mm | 180kg | 3.75kw | 500kg/h |
| JS-QPQX-4000 | 4000*1200*1300mm | 400kg | 4.1kw | 800kg/h |
| JS-QPQX-5000 | 5000*1200*1300mm | 500kg | 5.1kw | 1500kg/h |
| JS-QPQX-6000 | 6000*1200*1300mm | 600kg | 5.5kw |
2000kg/h |
| 1 | After fruits and vegetables are moved into the machine and bubble makes the water keep rolling in the pool. |
| 2 | It can be immersion cleaning thoroughly for them; of course use of the rinsing-water circulation is obviously better. After that fruits will be moved to the next step by the lifting device of itself. |
| 3 | With the stage hoist have spray pump cleaning of piping as well as convenient and practical operation. |
| 4 | Welding machine frame is durable,stable operation,no noise and trouble. |

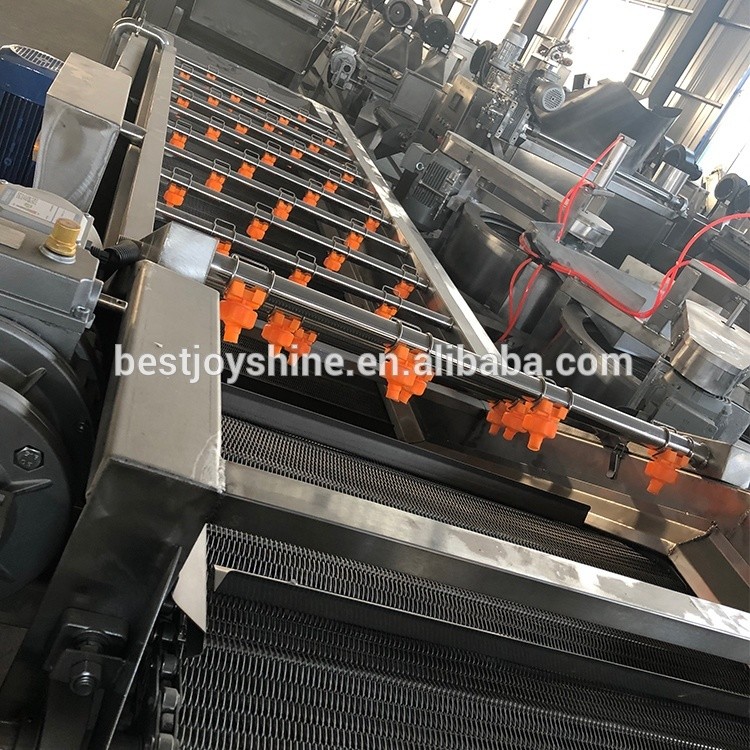

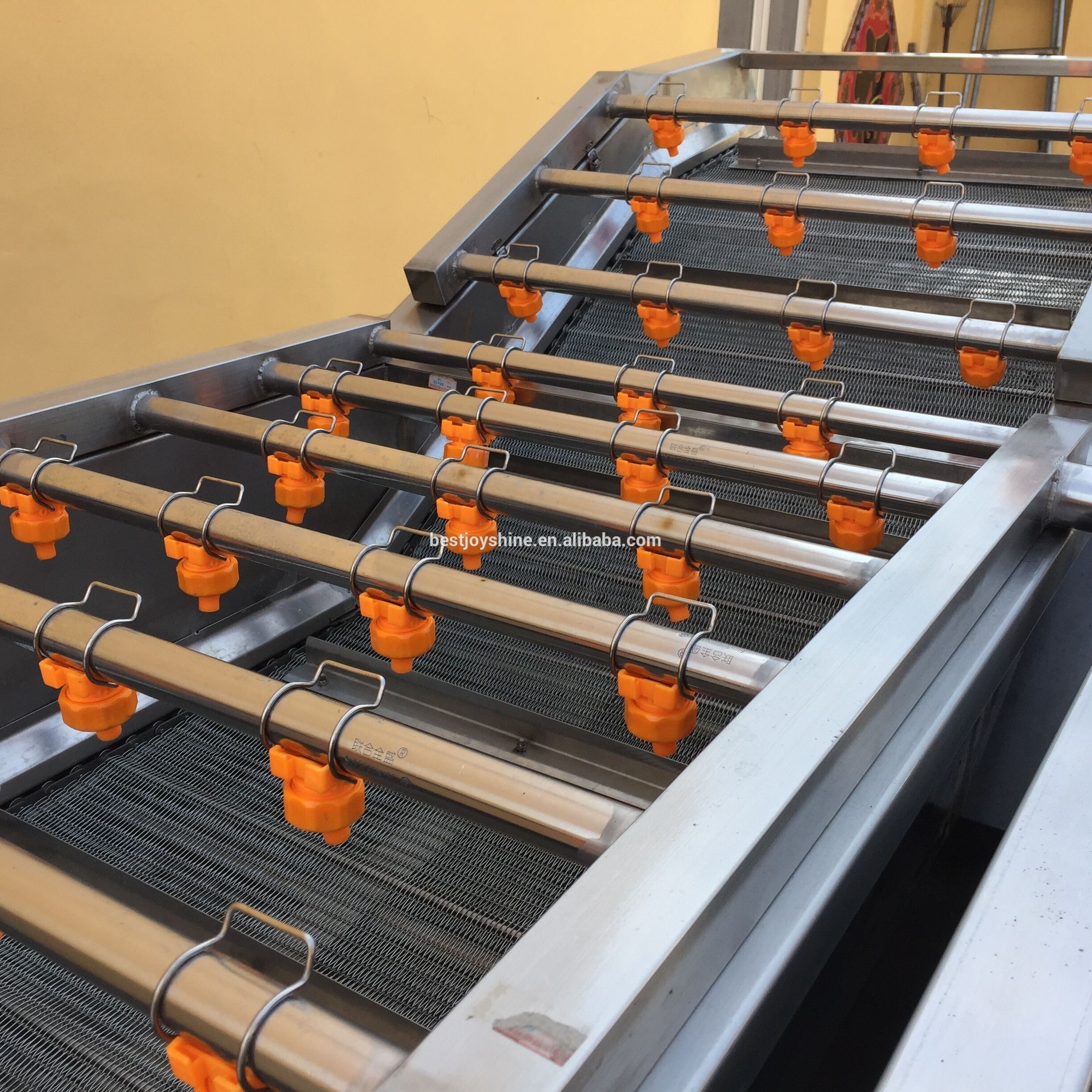

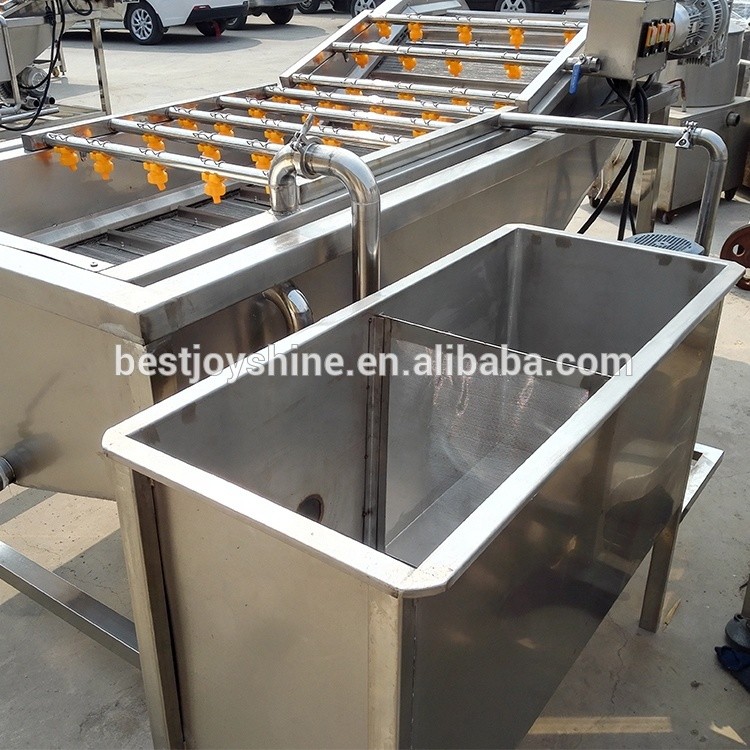

Working pictures
The showcase of tomato washing machine
Company Information
Joyshine machinery factory is located in Zhengzhou City in Henan Province, which is one of the most famous industrial city in China. During last 5 years we are mainly engaged in food machinery. We are able to manufacture and supply meat processing machinery, fish processing machinery, fruit and vegetable processing machinery, poultry processing machinery, etc.
Related Products
We are maufacturing brush type washing machine, you can choose soft brush or hard brush to wash or peel different raw material,
Our types washing machines all can wash kinds of fruits and vegetables, they are multifunctional.
Washing capacity can be customized. If you are interested in them, please send Email or WhatsApp +86 18203653708 me.
