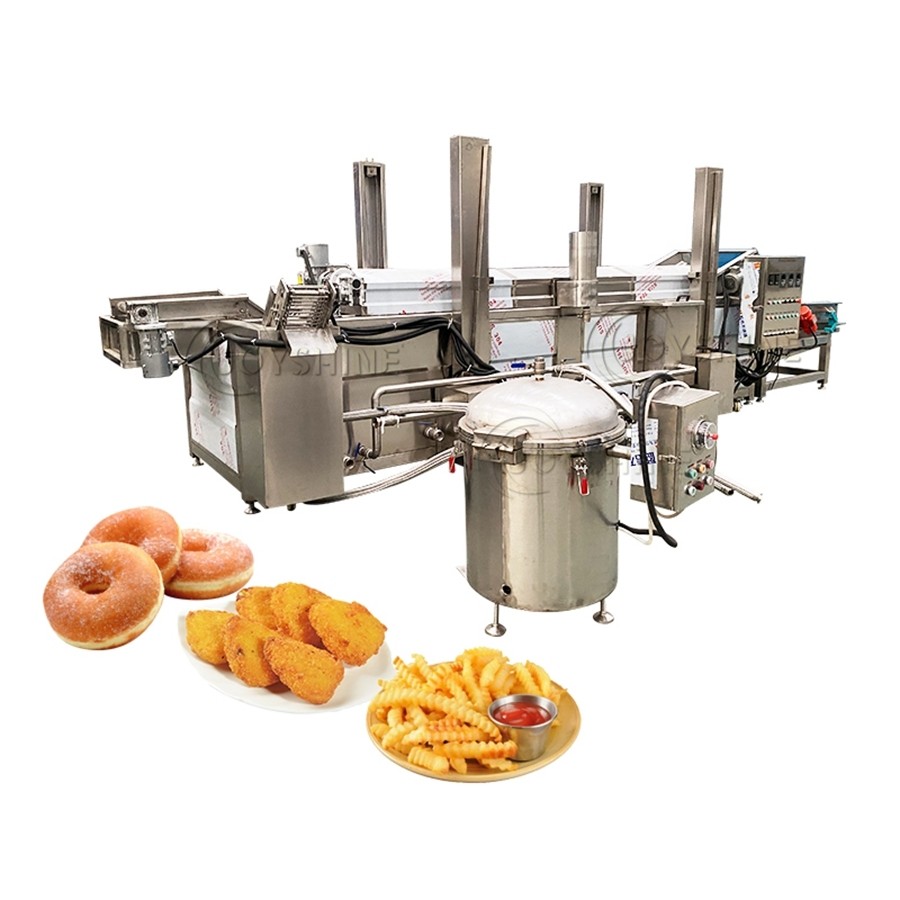

Electric Heating Continuous Conveyor Belt Donut Frying Machine with 580 KG Capacity
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Price | $12,500.00/sets >=1 sets |
| Packaging Details | Standard export wooden cases, full container, or according to customer's requirements. |
| Supply Ability | 200 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops | Showroom Location | None |
|---|---|---|---|
| Condition | New | Power Source | Electric, Gas |
| Voltage | 380v | Power | 60kw |
| Weight | 580 KG | Dimension(L*W*H) | 4000*1200*2200mm |
| Capacity | 300kg/h, 50-2000 Kg/h | Warranty | 1 Year |
| Key Selling Points | High Productivity | Marketing Type | New Product 2022 |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Name | Frying Machine Deep Fryer | Application | Snack Food Industry |
| Machinery Material | SUS304 Stainless Steel | Heating Method | Electric Heating, Gas Heating, Etc. |
| Type | Autamatic And Semi-automatic | Port | Qingdao/Ningbo/Shanghai/Tianjin |
Product Description
Products Description

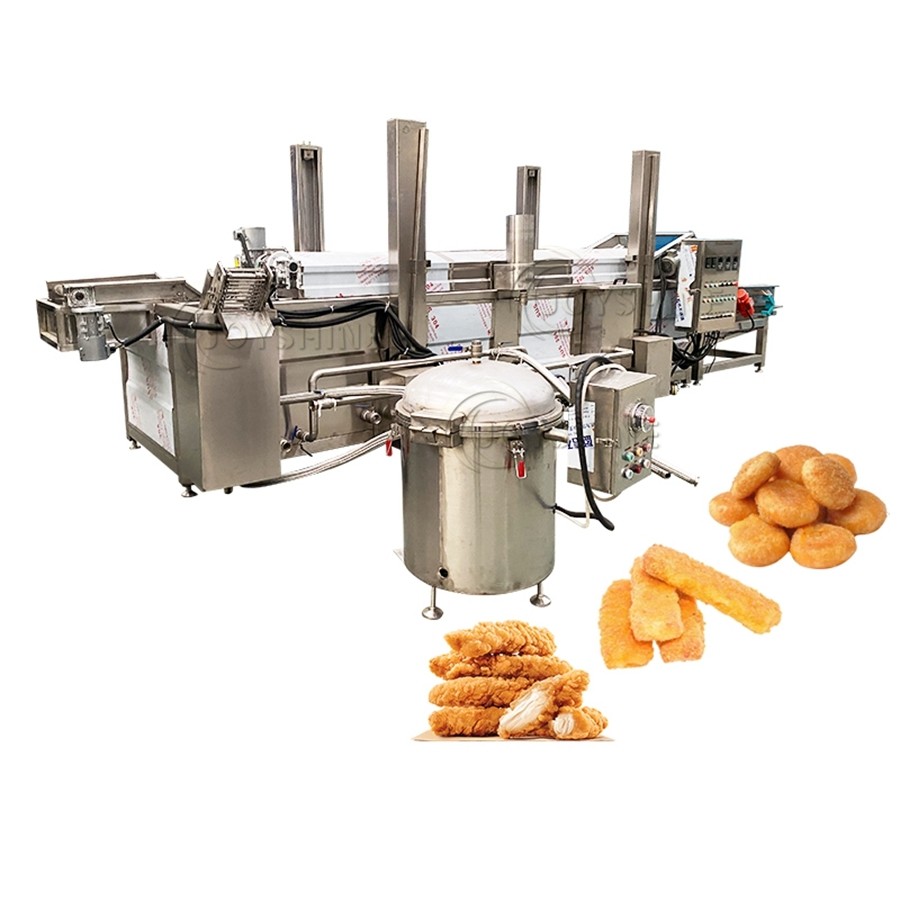

This automatic continuous fryer machine is widely used in restaurant and all food industrial, also an indispensable machine in kinds of snack processing line. It consists of automatic belt conveying system, automatic lifting system, oil adding system, oil filtering system and automatic temperature control system.
Features & Advantages:
1 | Conveyor belt speed is adjustable for different frying time according to different products | ||||||
2 | Electricity, gas or diesel, and also electromagnetism as power source Gas or diesel model uses the most advanced and reliable Italy imported Riello brand burner with the advantage of fuel economy, low noise, prevent heating loss, high efficiency | ||||||
3 | Automatic lifting system for easy cleaning the machine and save human power | ||||||
4 | Oil circulation system to continuously filter oil residue and extend the service life of cooking | ||||||
5 | Oil level alarm and automatic oil temperature control (0-300°C) | ||||||
6 | Double belt design to prevent floating, ensure complete and perfect frying effect | ||||||
7 | Scrapers fixed on the belt to make the products come out easily | ||||||
8 | Fire-extinguishing system can be added according to your demand | ||||||
9 | PLC touch screen control panel | ||||||
Product Paramenters
Model | Dimension | Weight | Power (electric heating) |
JS-LXYZ-2500 | 2500*800*1300mm | 500kg | 24kw |
JS-LXYZ-3000 | 3000*1200*2200mm | 800kg | 80kw |
JS-LXYZ-4000 | 4000*1200*2200mm | 1000kg | 120kw |
JS-LXYZ-5000 | 5000*1200*2200mm | 1200kg | 180kw |
JS-LXYZ-6000 | 6000*1200*2200mm | 1500kg | 200kw |
Contact us for more details please!
Application

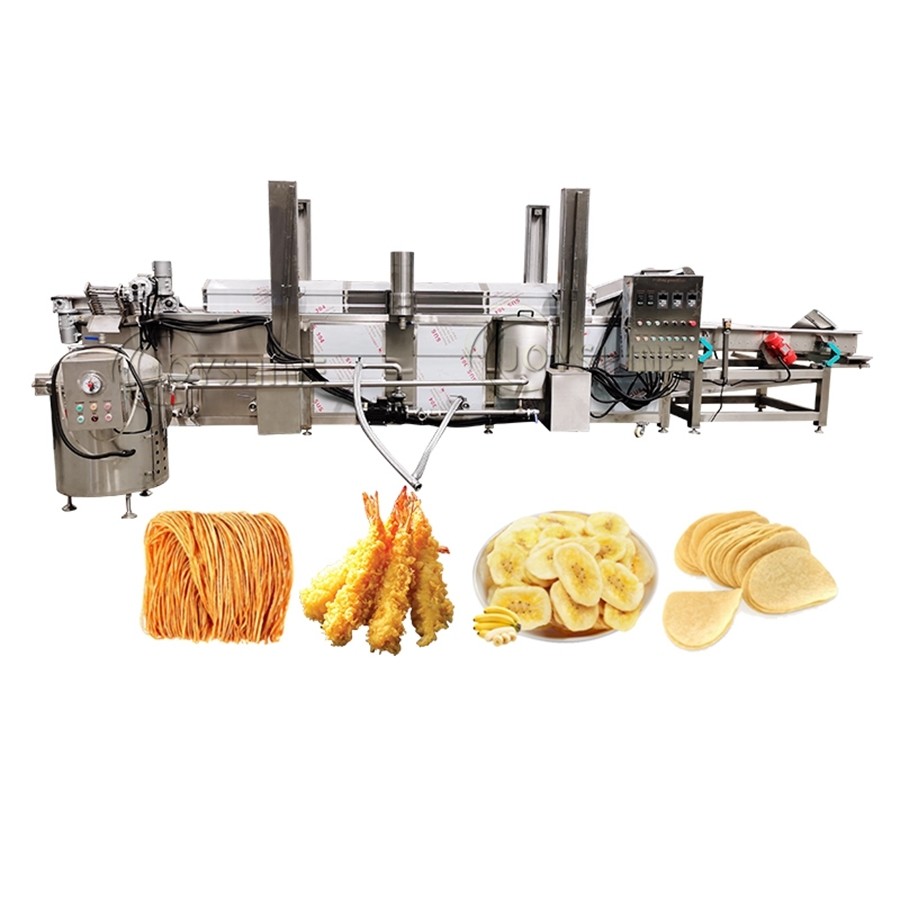

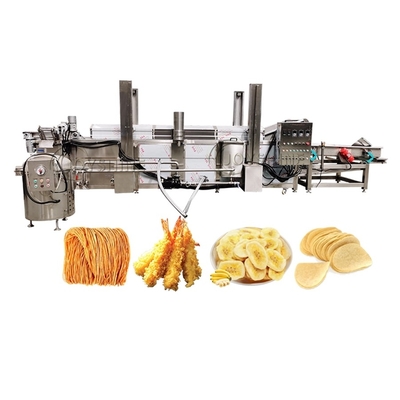

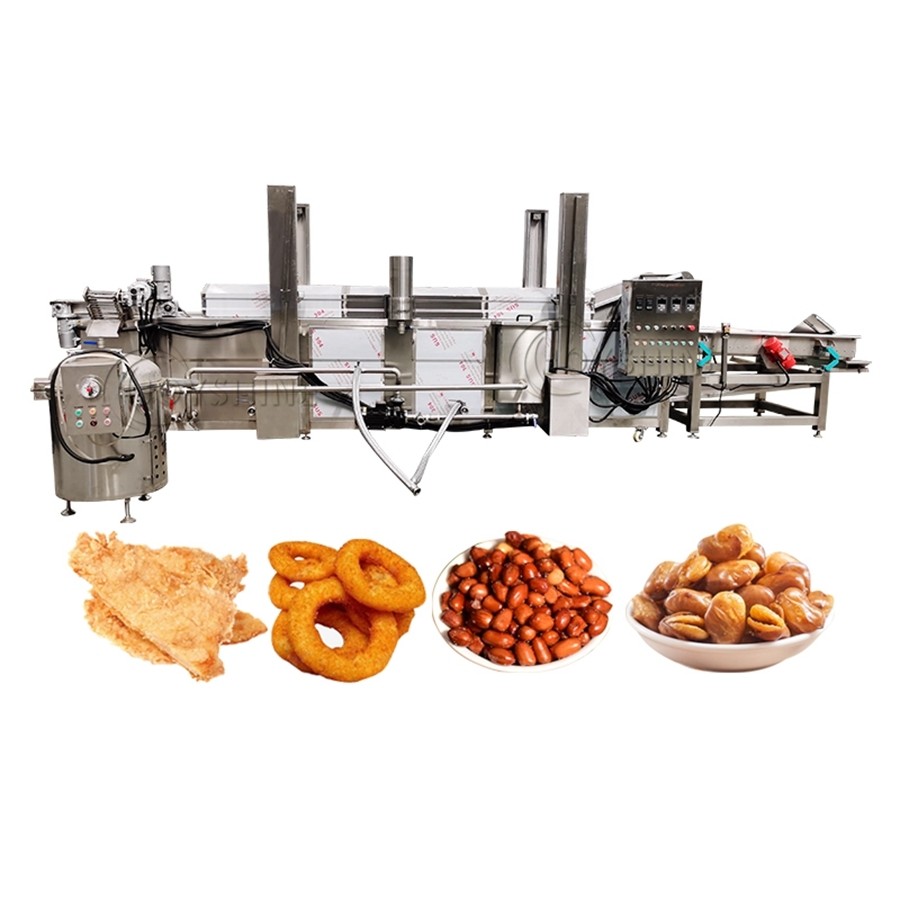

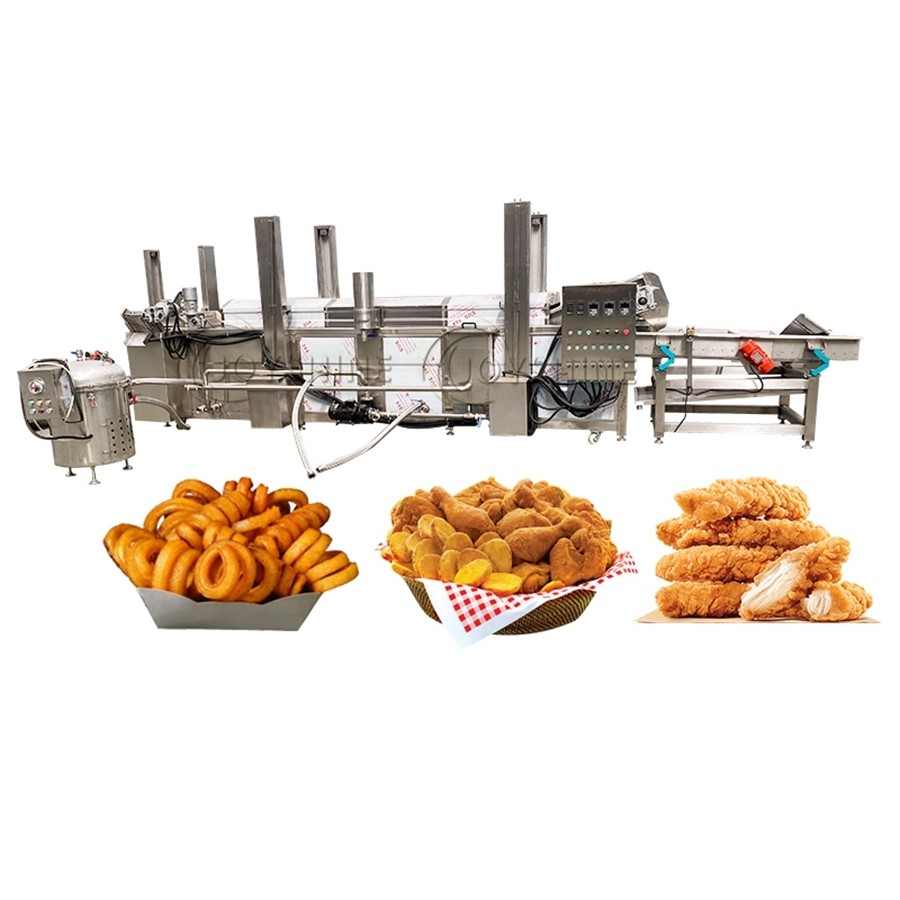

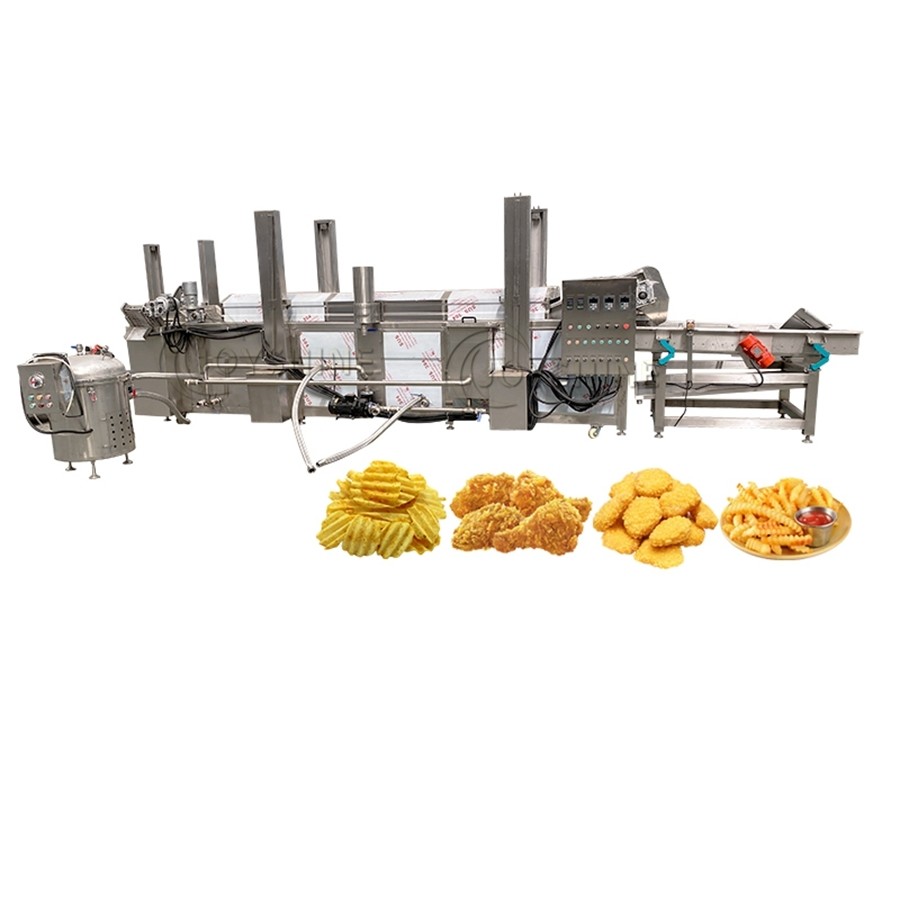

This continuous fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry with large capacity
This continuous frying machine always works together with other machines like deoiling machine to combine one whole production line.
This continuous frying machine always works together with other machines like deoiling machine to combine one whole production line.
Detailed Description
PLC Control Panel
To control the whole machine working, adjust temperature and mesh belt speed
Double Mesh Belt
The upper mesh belt is in the shape of a wave and has a baffle plate to drive the transfer of light materials such as potato chips
to make it evenly fried to achieve better frying effect
Automatic Lifting Device
Lift the mesh belt for easy cleaning the machine inside and save human power
Filter Screen
Preliminary rough filtration of residue
Oil Storage Tank
For Oil storage after one day's working
Vacuum Oil Filtering Device
Continuously refined filter the oil while frying
Packing & Delivery
By express, air, railway and sea, LCL and full container.
About Us
With industry-leading technology and R&D team, experienced production processing team, advanced manufacturing facility, and also perfect quality management system, professional after-sales team, we will be your reliable supplier to provide you one-stop turn-key project!
