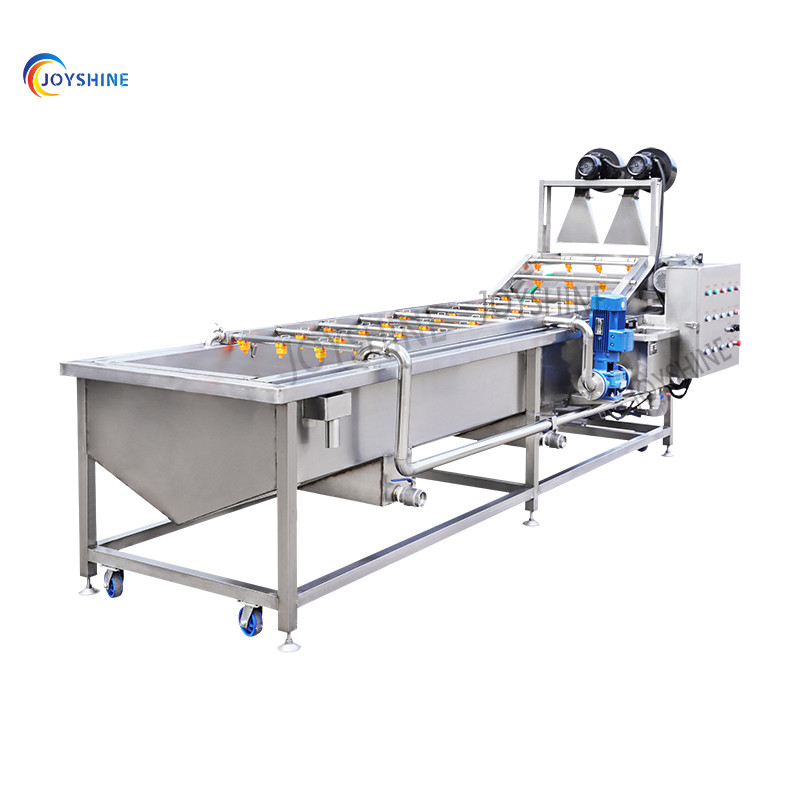

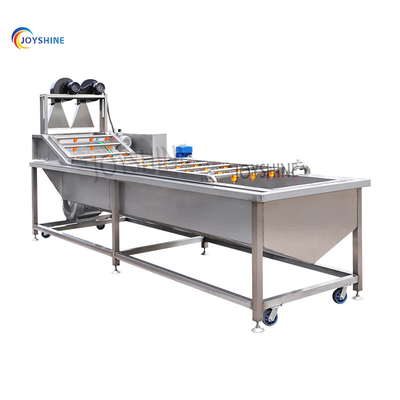

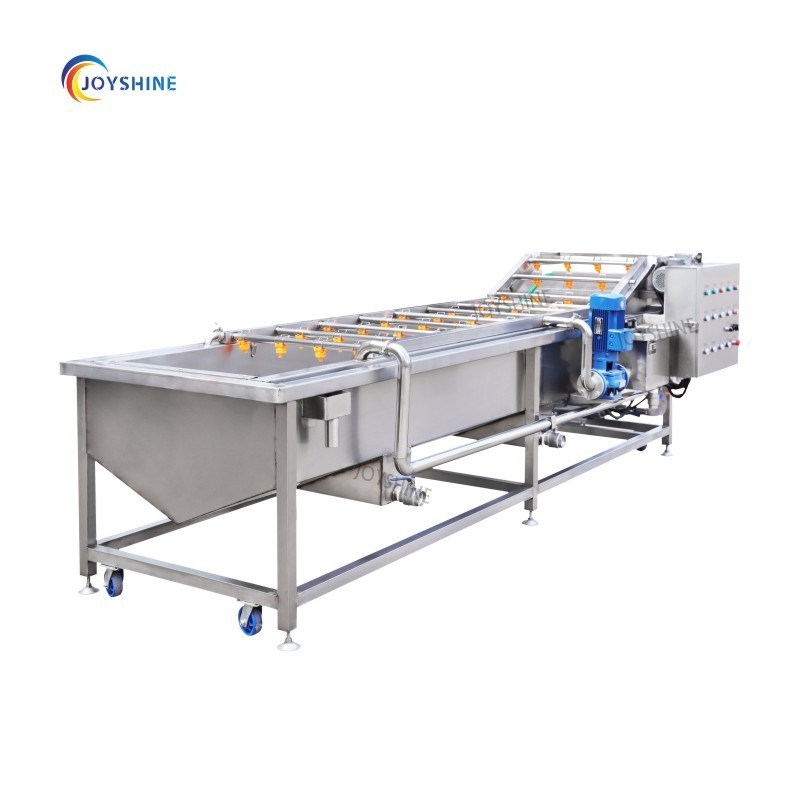

4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine

  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
  • 4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine
Place of Origin Shandong, China
Brand Name Joyshine
Certification CE
Model Number JSQP-4000
Price $5,890.00/sets 1-2 sets
Packaging Details Standard export wooden cases, or according to customer's demands.
Supply Ability 5000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Applicable Industries Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location None Video Outgoing-inspection Provided
Machinery Test Report Provided Marketing Type Hot Product 2019
Warranty Of Core Components 1 Year Core Components PLC, Bearing, Motor, Pump
Voltage 380v Power 5.5kw
Dimension(L*W*H) 4000*1200*1300mm Weight 600kg
Warranty 1 Year Application Fields Snack Food Factory, Fruit Processing Plant, Vegetable Processing Plant, Frozen Food Factory
Raw Material Fruit, Vegetables, SUS304 Stainless Steel Output Product Name Fruit And Vegtable
Key Selling Points Long Service Life Name Bubble Washing Machine
Application Used To Wash Fruit, Vegetable Or Fish, Meat. Motor Quantity 3 Pcs
Advantage Can Be Customized According To Customer's Demands. Washing Type High Pressure Bubble Washing
Washing Advantage Circulating Water Feature Non-damaging Material
MOQ 1 Set Package Standard Wooden Packaging
After Warranty Service Video Technical Support, Online Support Local Service Location Viet Nam, Philippines
Port Qingdao, Shanghai, Ningbo, Guangzhou, Etc.
Leave a Message
Product Description
Factory price fruit vegetable washer and sterilizer orange fruit washing machine
This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 0

Working Principle:

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 1
Features:
1
Equipped with a bubble generator to make the objects roll over
High pressure air bubble and spraying water can wash off dirt, sands and other residues
2
Equipped with VFD to better adjust the belt speed
3
Equipped with separate filter tank and water recycling system
4
Equipped with spraying section with clean water for twice washing
The objects are automatically conveyored to spraying section by the conveyor mesh belt
Advantages:
1
Food grade SUS304 stainless steel
2
High cleaning ability, high washing rate
3
Wide range application, suitable for many products
4
No damage to the products
OEM Service
According to the customers' special requirements, there are following optional configurations:
1
Ozone generator for sterilization and disinfection and decomposition of pesticide residues
2
Ultrasonic module through ultrasonic vibration to clean the products completely
3
Air fans to be added at the outlet for simple frying after washing
4
Lifting device can be added to life the mesh belt for easy cleaning of the tank
5
Any other functions you need, tell us freely, we will design special machine for you
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 2
Detailed Images
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 3
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 4

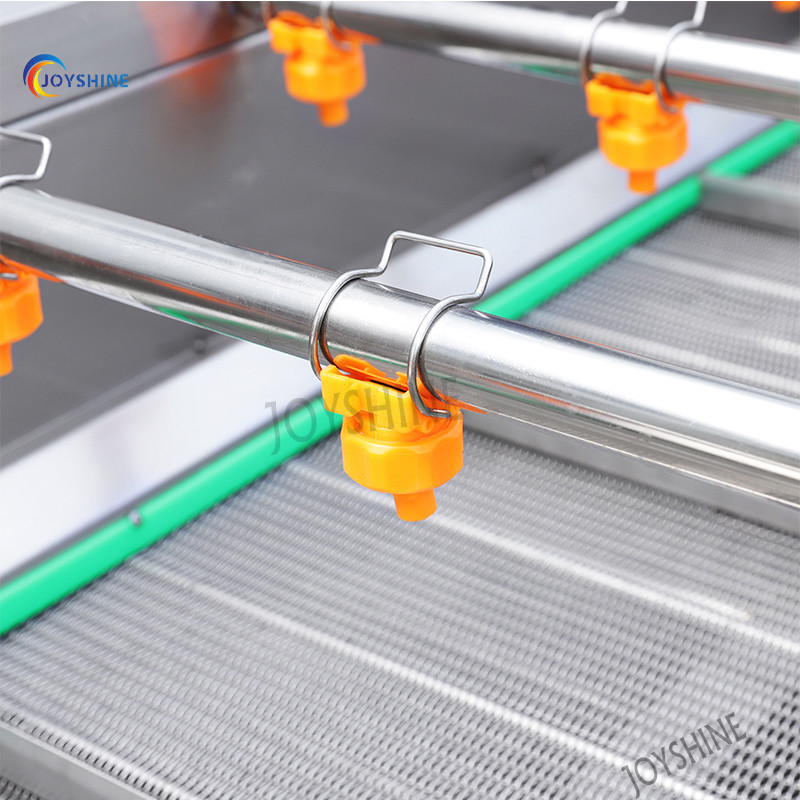

Spray Nozzle
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 5

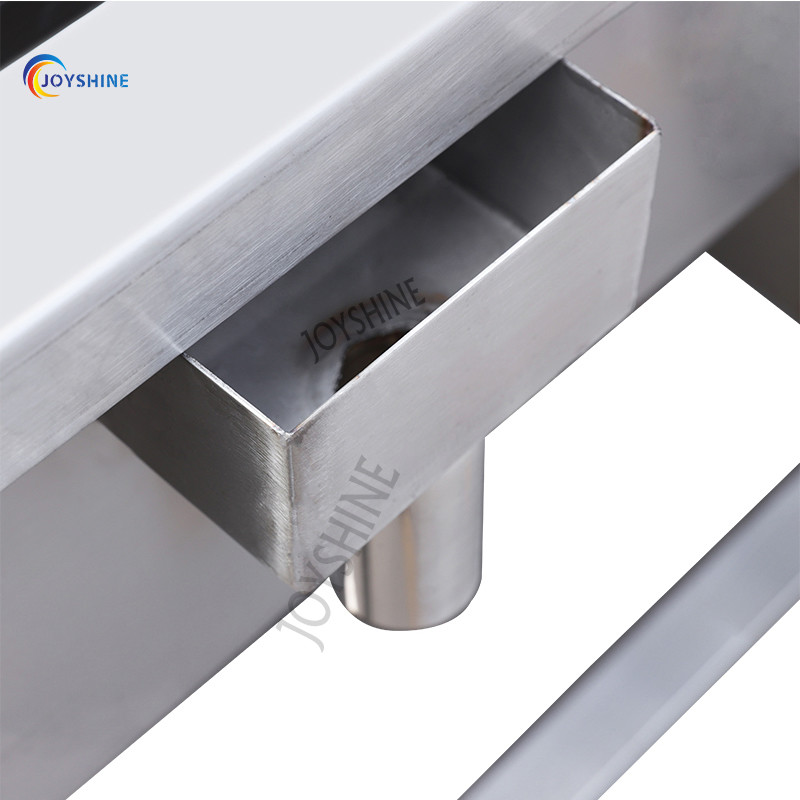

Overflow Gap
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 6

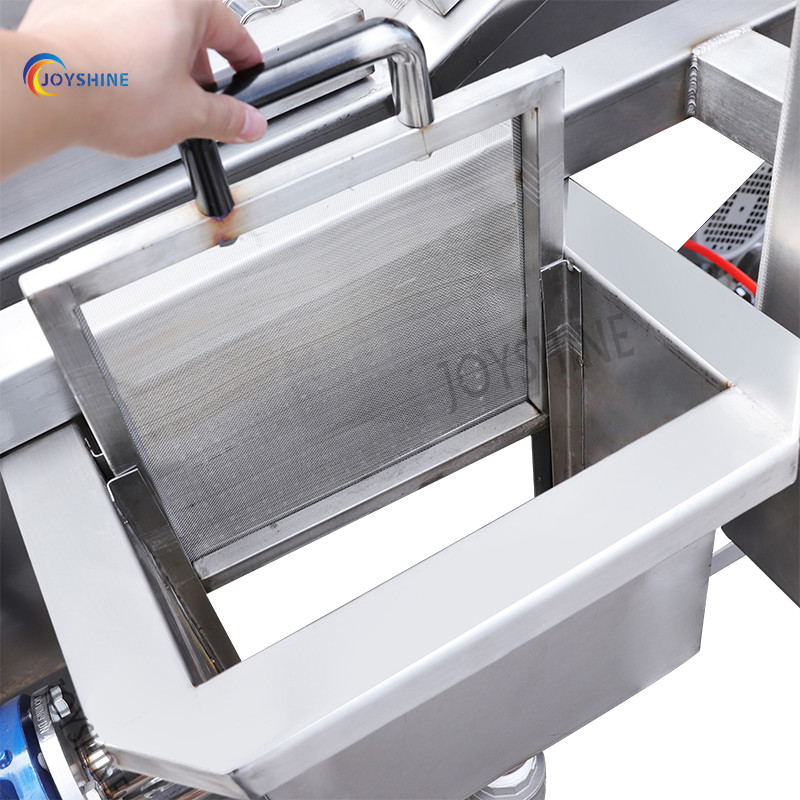

Filter Tank
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 7
Waste Water Outlet
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 8
Twice Spraying Section
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 9
Sealing Strips
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 10
Control Panel
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 11
Vortex Blower
Application
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 12
Product Paramenters
Model
Dimension
Weight
Power
Capacity
JS-QP-2500
2500*1000*1300mm
400kg
4.45kw
500kg/h
JS-QP-3000
3000*1200*1300mm
600kg
5.25kw
800kg/h
JS-QP-4000
4000*1200*1300mm
700kg
6.6kw
1000kg/h
JS-QP-5000
5000*1200*1300mm
900kg
8.3kw
1500kg/h
JS-QP-6000
6000*1200*1300mm
1100kg
9.4kw
2000kg/h
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements, Contact for more details please!

This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
4000*1200*1300mm Fruit Vegetable Washer and Sterilizer Orange Fruit Washing Machine 13
