Joyshine Industrial Air Bubble SUS304 Ozone Leaf Vegetable Washing Machine for Fruits
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Joyshine |
| Certification | CE |
| Model Number | JSQP3000 |
| Price | $8,300.00/sets 1-2 sets |
| Packaging Details | Export standard wooden case packaging for Commercial Fruit And Vegetable Cleaning Bubble Peeling Brush Carrot Cassava Apple Washing Machine |
| Supply Ability | 30 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | Thailand | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Hot Product 2021 |
| Warranty Of Core Components | 2 Years | Core Components | PLC, Engine |
| Voltage | 220v/380v/415v | Power | 5.25kw |
| Dimension(L*W*H) | 3000*1200*1300mm | Weight | 580kg |
| Warranty | 1 Year | Application Fields | Snack Food Factory, Fruit Processing Plant, Vegetable Processing Plant, Frozen Food Factory |
| Raw Material | Fruit, Vegetables | Key Selling Points | Sustainable |
| Name | Bubble Peeling Brush Carrot Cassava Apple Washing Machine | Machine Material | Stainless Steel 304 Made |
| Usage | Food Processing Industries | Capacity | 300-500kg/h |
| Advantage | High Efficiency | Function | Washing Food |
| Package | Export Standard Packaging | Application | Fruits And Vegetables |
| Keywords | Bubble Peeling Brush Carrot Cassava Apple Washing Machine | Feature | High Efficiency Easy Operate |
| After Warranty Service | Video Technical Support, Online Support | Local Service Location | Thailand |
| After-sales Service Provided | Video Technical Support | Port | Qingdao/Ningbo/Shanghai/Tianjin |
Product Description
Products Description
Commercial Fruit And Vegetable Cleaning Bubble Carrot Cassava Apple Washing Machine
This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
Working Principle:
This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
Features:
1 | Equipped with a bubble generator to make the objects roll over High pressure air bubble and spraying water can wash off dirt, sands and other residues | ||||||
2 | Equipped with VFD to better adjust the belt speed | ||||||
3 | Equipped with separate filter tank and water recycling system | ||||||
4 | Equipped with spraying section with clean water for twice washing The objects are automatically conveyored to spraying section by the conveyor mesh belt | ||||||
Advantages:
1 | Food grade SUS304 stainless steel | ||||||
2 | High cleaning ability, high washing rate | ||||||
3 | Wide range application, suitable for many products | ||||||
4 | No damage to the products | ||||||
OEM Service
According to the customers' special requirements, there are following optional configurations:
1 | Ozone generator for sterilization and disinfection and decomposition of pesticide residues | ||||||
2 | Ultrasonic module through ultrasonic vibration to clean the products completely | ||||||
3 | Air fans to be added at the outlet for simple frying after washing | ||||||
4 | Lifting device can be added to life the mesh belt for easy cleaning of the tank | ||||||
5 | Any other functions you need, tell us freely, we will design special machine for you | ||||||
Detailed Images
Spray Nozzle
Overflow Gap

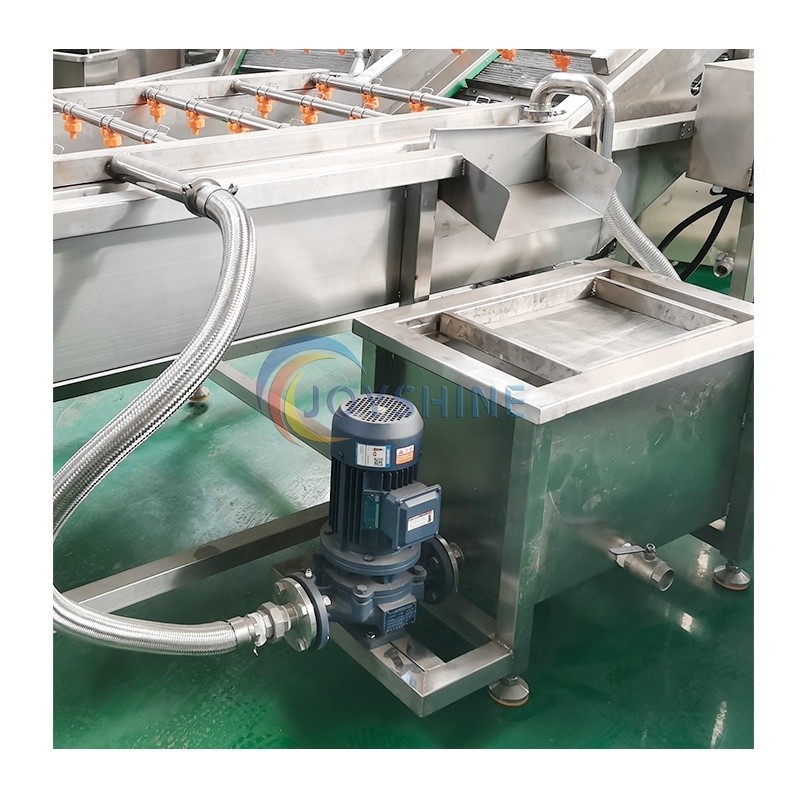

Filter Tank
Waste Water Outlet
Twice Spraying Section
Sealing Strips
Control Panel

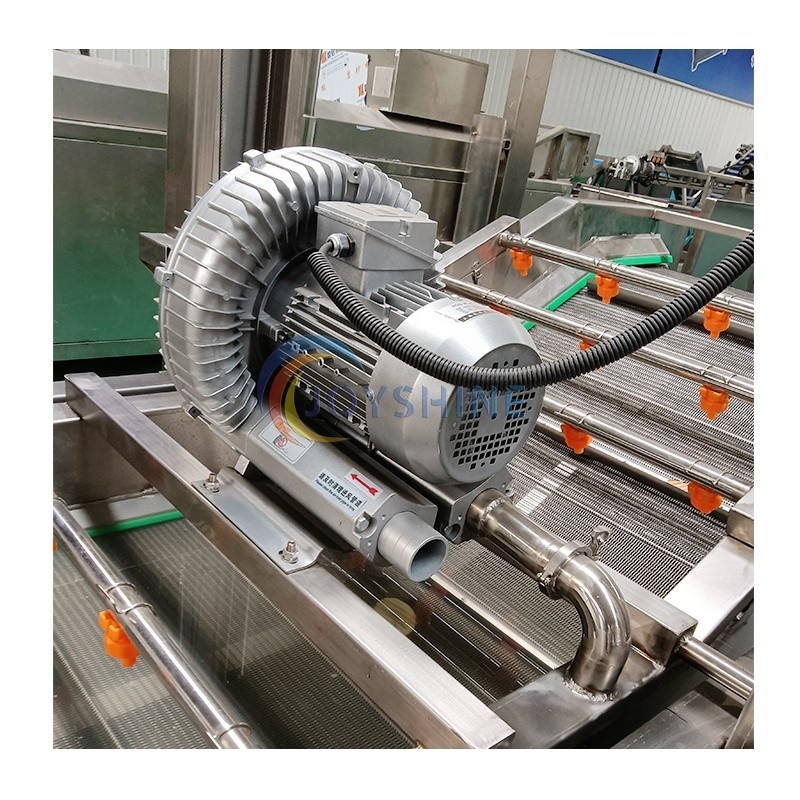

Vortex Blower
Application
Product Paramenters
Model | Dimension | Weight | Power | Capacity |
JS-QP-2500 | 2500*1000*1300mm | 400kg | 4.45kw | 500kg/h |
JS-QP-3000 | 3000*1200*1300mm | 600kg | 5.25kw | 800kg/h |
JS-QP-4000 | 4000*1200*1300mm | 700kg | 6.6kw | 1000kg/h |
JS-QP-5000 | 5000*1200*1300mm | 900kg | 8.3kw | 1500kg/h |
JS-QP-6000 | 6000*1200*1300mm | 1100kg | 9.4kw | 2000kg/h |
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements, Contact for more details please!
This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
