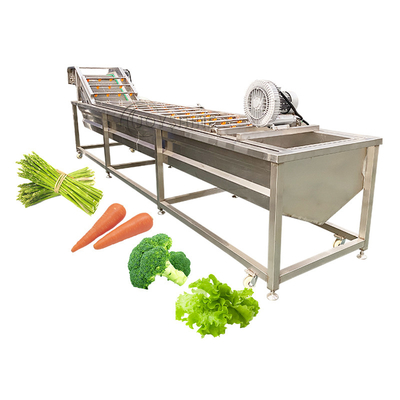

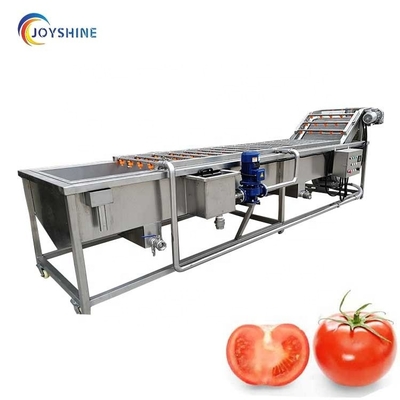

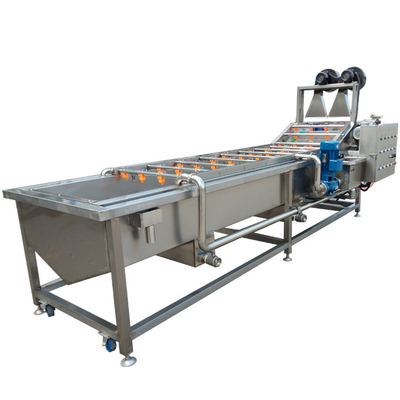

Small Scale Automatic Vegetable Bubble Washing and Sorting Machine with Long Service Life
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Certification | CE |
| Model Number | JSQP-2500 |
| Price | $6,000.00/sets 1-2 sets |
| Packaging Details | Standard export wooden cases, or according to customer's demands. |
| Supply Ability | 5000 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | None | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Hot Product 2019 |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Bearing, Motor, Pump |
| Voltage | 380v | Power | 5.5kw |
| Dimension(L*W*H) | 2500*1000*1300mm | Weight | 600 KG |
| Warranty | 1 Year | Application Fields | Snack Food Factory, Fruit Processing Plant, Vegetable Processing Plant, Frozen Food Factory |
| Raw Material | Fruit, Vegetables, SUS304 Stainless Steel | Output Product Name | Fruit And Vegtable |
| Key Selling Points | Long Service Life | Name | Bubble Washing Machine |
| Application | Used To Wash Fruit Vegetable Or Fish Meat | Motor Quantity | 3 Pcs |
| Advantage | Can Be Customized According To Customer's Demands | After Warranty Service | Video Technical Support |
| Port | Qingdao, Shanghai, Ningbo, Guangzhou, Etc. |
Product Description
Products Description
small scale automatic continuous fruit vegetable bubble washing machine and sorting machine
This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
Working Principle:
This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
Features:
1 | Equipped with a bubble generator to make the objects roll over High pressure air bubble and spraying water can wash off dirt, sands and other residues | ||||||
2 | Equipped with VFD to better adjust the belt speed | ||||||
3 | Equipped with separate filter tank and water recycling system | ||||||
4 | Equipped with spraying section with clean water for twice washing The objects are automatically conveyored to spraying section by the conveyor mesh belt | ||||||
Advantages:
1 | Food grade SUS304 stainless steel | ||||||
2 | High cleaning ability, high washing rate | ||||||
3 | Wide range application, suitable for many products | ||||||
4 | No damage to the products | ||||||
OEM Service
According to the customers' special requirements, there are following optional configurations:
1 | Ozone generator for sterilization and disinfection and decomposition of pesticide residues | ||||||
2 | Ultrasonic module through ultrasonic vibration to clean the products completely | ||||||
3 | Air fans to be added at the outlet for simple frying after washing | ||||||
4 | Lifting device can be added to life the mesh belt for easy cleaning of the tank | ||||||
5 | Any other functions you need, tell us freely, we will design special machine for you | ||||||
Detailed Images

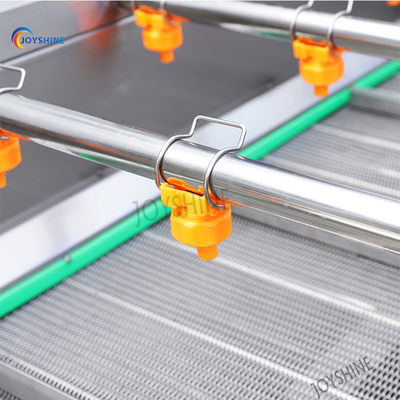

Spray Nozzle
Overflow Gap
Filter Tank
Waste Water Outlet
Twice Spraying Section
Sealing Strips
Control Panel
Vortex Blower
Application
Product Paramenters
Model | Dimension | Weight | Power | Capacity |
JS-QP-2500 | 2500*1000*1300mm | 400kg | 4.45kw | 500kg/h |
JS-QP-3000 | 3000*1200*1300mm | 600kg | 5.25kw | 800kg/h |
JS-QP-4000 | 4000*1200*1300mm | 700kg | 6.6kw | 1000kg/h |
JS-QP-5000 | 5000*1200*1300mm | 900kg | 8.3kw | 1500kg/h |
JS-QP-6000 | 6000*1200*1300mm | 1100kg | 9.4kw | 2000kg/h |
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements, Contact for more details please!

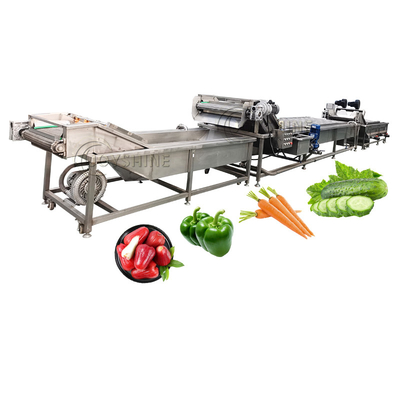

This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
