High Demand in Algeria 304 Stainless Steel Automatic Frozen French Fries Production Line
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Joyshine |
| Certification | Global required certification |
| Price | $65,000.00/sets 1-4 sets |
| Packaging Details | The banana chips frying machine is packed by wooden box.The box is 1000 mm long, 750 mm wide and 500 mm high. |
| Supply Ability | 900 Set/Sets per Month banana chips frying machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Year | 2020 | Dimension(L*W*H) | Custom Processing |
|---|---|---|---|
| Weight | Custom Processing | Voltage | 220V/380V |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas, Online Support | Product Name | Banana Chips Frying Machine |
| Material | 304 Stainless Steel | Application | Fry Snacks/meats/foods/vegetables/pasta/aquatic |
| Species | French Fries Potato Chip Machine | Range Of Temperature | 0-300℃ |
| Custom Processing | Yes | Heating Method | Coal, Electricity, Gas, Diesel |
| Keywords | Frozen French Fries Production Line | Product Usage | Fried Process |
| Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops | After Warranty Service | Online Support |
| Local Service Location | Turkey, Thailand, Malaysia | Showroom Location | Turkey, India, Thailand |
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | New Product 2020 | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Gearbox | Condition | New |
| Warranty | 1 Year | Type | Coal, Electric, Gas |
| Power | 47KW | Port | Qingdao/Tianjin/Shanghai |
Product Description
Why Choose Us
Plantain Cassava Banana Chips Frying Making Machine Production Process Line Price
Product Advantage
1We are a professional manufacture to produce french fries making machines, potato chips making machines, banana chips making machines.
2Process capacity including input capacity and output capacity and Process flow can be customized according to your need.
3About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.
4 Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.
5 All equipment in the production line is made of 304 stainless steel.
6 Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.
7 The size of French fries and the thickness of potato chips are adjusted.
8 We can design floor plan of complete line you need epending on your area' s size.
No. | Machinery | Feature |
1 | Elevator | It is used to lift fresh potatoes into next step screw washing and peeling machine automatically. |
2 | Screw potato washing and peeling machine | It is used to peel potatoes completely with hard brush and emery brush, uneven and corrugated brushes can peel potatoes completely. |
3 | Inspecting table | It is used to pick out unqualified potatoes such as bad parts and potato eyes manually, this machine can be equipped with Waste bins and return unpeeled potatoes into previous peeling machine. |
4 | Potato cutter | It is used to cut potato strips, strips size can be customized, |
4 | Potato slicer | It is used to cut potato chips, chips thickness can be adjusted. |
5 | Elevator with water bucket | It is used to preclean and lift potato strips into next step Rinsing machine. |
6 | Rinsing machine | It is used to wash potato starch and protect potato from oxidation to keep strips and chips' color. |
7 | Blanching machine | ---It is used to deactivate the activity of the oxidase, take off the starch to keep french fries’s soft taste. ---Heating source can use Gas heating, Electricity heating or Diesel heating any one. ---Blanching time and Blanching temperature can be adjusted. |
8 | Vibration de-water machine | It is used to remove extra water, the bottom with water tray. This machine also has many small holes to leak out waste parts and u nqualified parts of strips. |
9 | Air-cooling machine | It is used to do secondary water removal. |
10 | Elevator | It is used to lift potato strips into next step Continuous frying machine. |
11 | Continuous frying machine | ---It is used to fry potato strips into fries in short time. ---Heating source can use Gas heating, Electricity heating or Diesel heating any one. ---Frying time and Frying temperature can be adjusted. |
12 | Vibrating de-oil machine | It is used to remove extra oil and leak out unqualified french fries. |
13 | Air-cooling machine | It is used to do secondary oil removal and cool down the temperature after frying. |
14 | Elevator | It is used to convey fries into freezer from air-cooling machine. |
15 | Fluidized belt freezer | It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and french fries quality. |
16 | Automatic weighing and packaging machine | It is used pack frozen french fries automatically. |

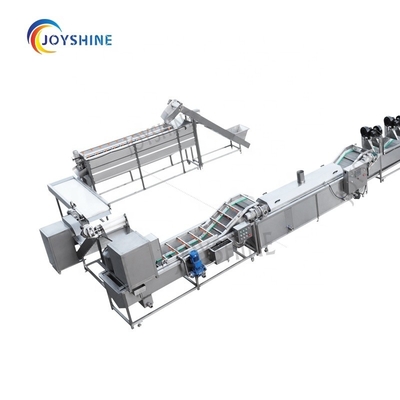

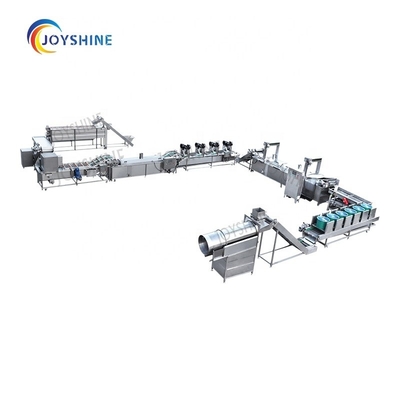

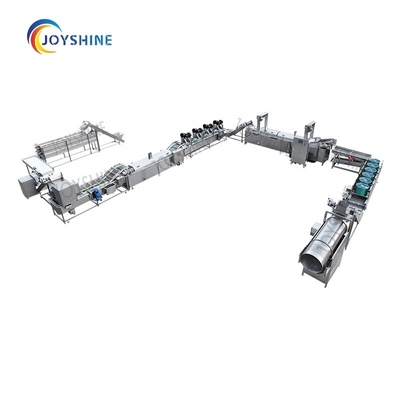

1. Fresh potato elevator
2. Screw potato washing and peeling machine
3. Inspecting table
4. Potato cutter and Potato slicer
5. Elevator with water bucket
6. Unqualified fries picking line
7. Rinsing machine
8. Blanching machine
9. Vibration de-water machine
10. Air-cooling machine
11. Elevator
12. Continuous frying machine
13. Vibrating de-oil machine
14. Air-cooling machine
15. Fluidized belt freezer
16. Automatic weighing and packaging machine
Detailed Description
The machine can be used in multiple places; used for peeling many kinds of food; slice and cut into strips with uniform thickness.
Related Products
Brush washing machine
French fries cutting machine
Slicing machine
Multi-function vegetable cutting machine
Frying machine
Semi-automatic potato chips production line
Certifications
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
Packing & Delivery
By express, air, railway and sea, LCL and full container.
About Us
We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.
Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Our company's productivity can meet the stock of spot products. One of the independent warehouses has an area of more than 2000 square meters, and we can quickly supply customers with machine sets, for production lines.
FAQ
What's the applicable materials: | Root vegetables or fruits. | ||||||
Serving life of blades: | 1-2 years | ||||||
Date of delivery: | 5-7 working days | ||||||
Voltage: | Customize according to the needs of different countries. | ||||||
Payment Tems: | T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChatPay. | ||||||
Packing: | Exporting standard fumigation wooden box. | ||||||
Transportation: | Shipping by express, air, railway and sea. | ||||||
Warranty: | 2 years | ||||||
OEM: | Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc. | ||||||
