Easy to Operate Commercial Bubble Fruit Avocado Mango Vegetable Potato Washing Machine
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Model Number | JS-QPQX-4000 |
| Price | $10,000.00/sets 1-4 sets |
| Packaging Details | standard export wooden case |
| Supply Ability | 20 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | None | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Hot Product 2022 |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Motor, Pump |
| Voltage | 220v/380v | Power | 6.6kw |
| Dimension(L*W*H) | 4000*1200*1300mm | Weight | 700 KG |
| Warranty | 2 Years | Application Fields | Snack Food Factory, Commercial Catering, Meat Processing Plants, Fruit Processing Plant, Vegetable Processing Plant |
| Machinery Function | Washing | Raw Material | Fruit, Vegetables, Nuts, Soybean |
| Key Selling Points | Easy To Operate | Name | Water Bubble Washing Machine |
| Function | Multifunctional | Material | SUS304 Stainless Steel |
| MOQ | 1set | Speed | Frequency Converter |
| Package | Standard Wooden Case | Working Principle | Air Bubble Spray Washing Machine |
| Advantage | Water Recycle | Feature | Easy Operation |
| Processing Types | Fruit Vegetable Bubble Washing | Port | Qingdao, Shanghai, And So On |
Product Description
Product Description

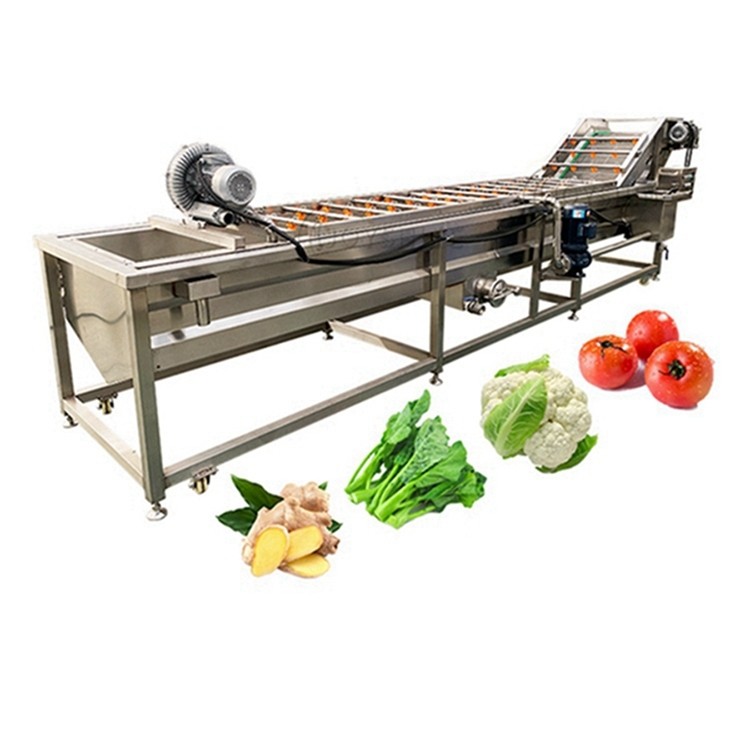

Commercial Industrial Bubble Fruit Avocado Mango Vegetable Potato Washing Machine/frozen Vegetable Production Line
This fruit washer machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
Working Principle
This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
Features:
1 | Equipped with a bubble generator to make the objects roll over High pressure air bubble and spraying water can wash off dirt, sands and other residues |
2 | Equipped with VFD to better adjust the belt speed |
3 | Equipped with separate filter tank and water recycling system |
4 | Equipped with spraying section with clean water for twice washing The objects are automatically conveyored to spraying section by the conveyor mesh belt |
Advantages:
1 | Food grade SUS304 stainless steel |
2 | High cleaning ability, high washing rate |
3 | Wide range application, suitable for many products |
4 | No damage to the products |
OEM Service
According to the customers' special requirements, there are following optional configurations:
1 | Ozone generator for sterilization and disinfection and decomposition of pesticide residues |
2 | Ultrasonic module through ultrasonic vibration to clean the products completely |
3 | Air fans to be added at the outlet for simple frying after washing |
4 | Lifting device can be added to life the mesh belt for easy cleaning of the tank |
5 | Any other functions you need, tell us freely, we will design special machine for you |
Detailed Images
Spray Nozzle
Overflow Gap
Filter Tank
Waste Water Outlet
Twice Spraying Section
Sealing Strips
Control Panel
Vortex Blower
Application
Parameters
Model | Dimension | Weight | Power | Capacity |
JS-QP-2500 | 2500*1000*1300mm | 400kg | 4.45kw | 500kg/h |
JS-QP-3000 | 3000*1200*1300mm | 600kg | 5.25kw | 800kg/h |
JS-QP-4000 | 4000*1200*1300mm | 700kg | 6.6kw | 1000kg/h |
JS-QP-5000 | 5000*1200*1300mm | 900kg | 8.3kw | 1500kg/h |
JS-QP-6000 | 6000*1200*1300mm | 1100kg | 9.4kw | 2000kg/h |
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements
This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
Related Products
FAQ
Voltage: | We normally make it 220v/50Hz/single phase or 380v/50Hz/three phases. But it can be made according to your demand, like 110v/60Hz/single phase, or 415v/50Hz/3 phases etc | ||||||
Payment Terms: | T/T, Alibaba Trade Assurance, Western Union, PayPal, Alipay, WechatPay, L/C | ||||||
Lead Time: | 7-10 working days after deposit | ||||||
Packing: | For LCL, we use export standard fumigation wooden case For FCL, sometimes no packing | ||||||
Shipping: | Shipping by express, air, railway or sea | ||||||
Warranty: | We promise one year guarantee for non-human damage factor | ||||||
Spare Parts: | If you want to change some parts after long time using, feel free to contact us We keep whole life spare parts supply | ||||||
