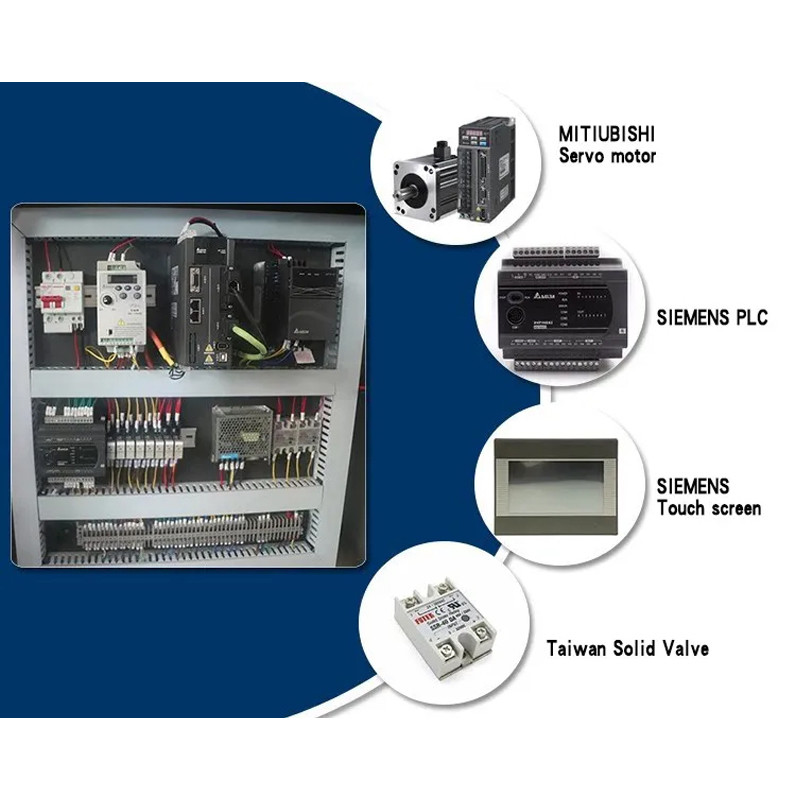

1.PLC control with touch panel-step by step instruction
2.Equipped with servo winding system, pneumatic control system.
3.The maximize to improve the whole machine's precision, reliability and stability.
4.Use intellectual temperature controller, the high temperature control to ensure the neat sealing .
5.The perfect automatic alarm safety protection, little waste. This machine completes the whole packing procedure of measuring ,
feeding , bagging , date printing, charging ( exhausting), products out-putting. counting automatically .
All Products
Automatic Coffee Powder Packing Machine Flour Packaging Machine 50g 100g 500g 1kg
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Joyshine |
| Price | $60,000.00/sets >=1 sets |
| Packaging Details | The fries making machine is packed by wooden box.The box is 1000 mm long, 750 mm wide and 500 mm high. |
| Supply Ability | 10 Set/Sets per Month fries making machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Capacity | 20bag/min, 20-50 Bags/min | Weight (KG) | 550 |
|---|---|---|---|
| Function | FILLING, Sealing, Counting | Application | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Cigarettes |
| Packaging Type | Foil, Foil/Bags | Packaging Material | Plastic |
| Automatic Grade | Automatic | Driven Type | Electric |
| Voltage | 380V | Dimension(L*W*H) | 2100*900*2350 |
| Warranty | 1 Year | Key Selling Points | Multifunctional |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Core Components | Motor, Pump, PLC, Gear, Bearing, Other | Product Name | Potato Chips Making Machine |
| Bag Type | Pillow Bag/Gusset Bag | Bag Length | 100-420mm |
| Bag Width | 110-350mm | Max Film Width | 720mm |
| Film Thickness | 0.04-0.10mm | Film Material | POPP CPP VMCPP BOPP PE PET AL NY |
| Machine Material | Stainless Steel SUS 304 | Usage | Food Snack |
| Product Keywords | Packing Machine Equipment | Type | Multi-Function Packaging Machine |
| Applicable Industries | Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops | Showroom Location | None |
| Warranty Of Core Components | 1 Year | Port | Qingdao/Tianjin/Shanghai |
Product Description

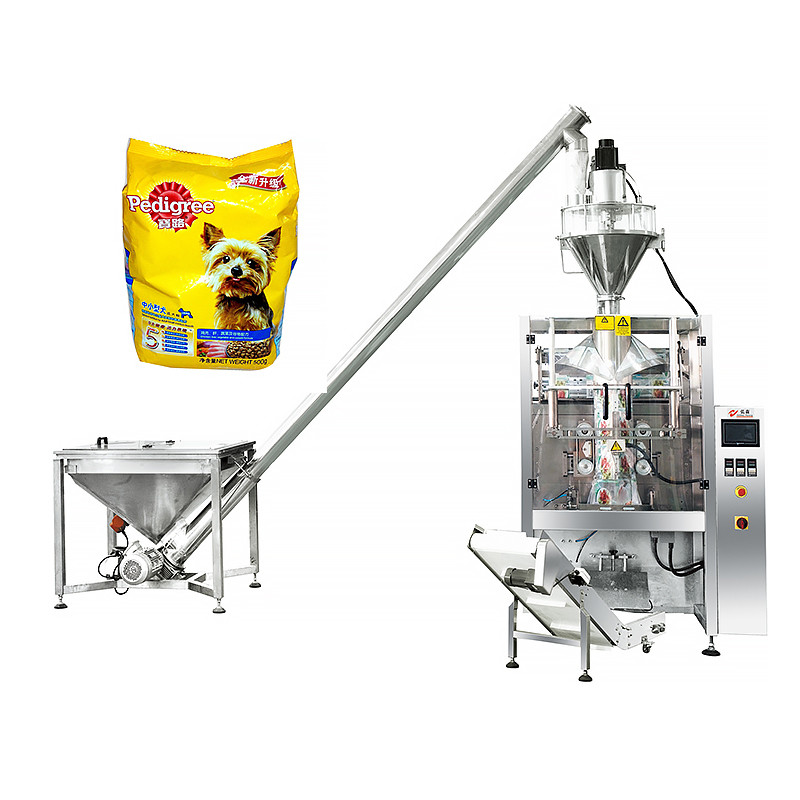

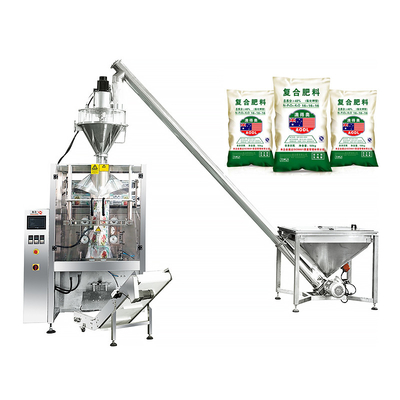

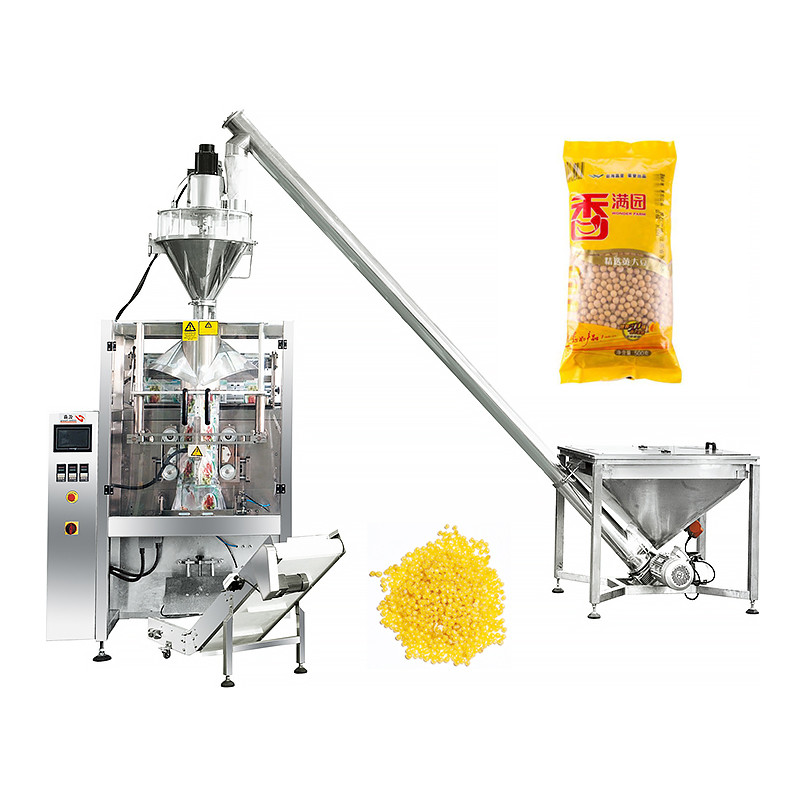

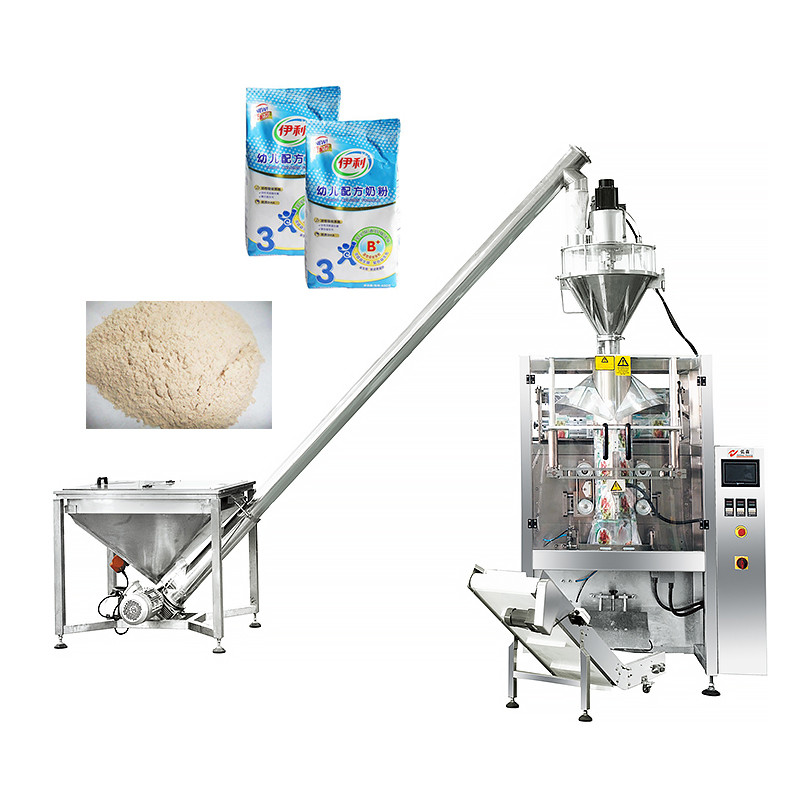

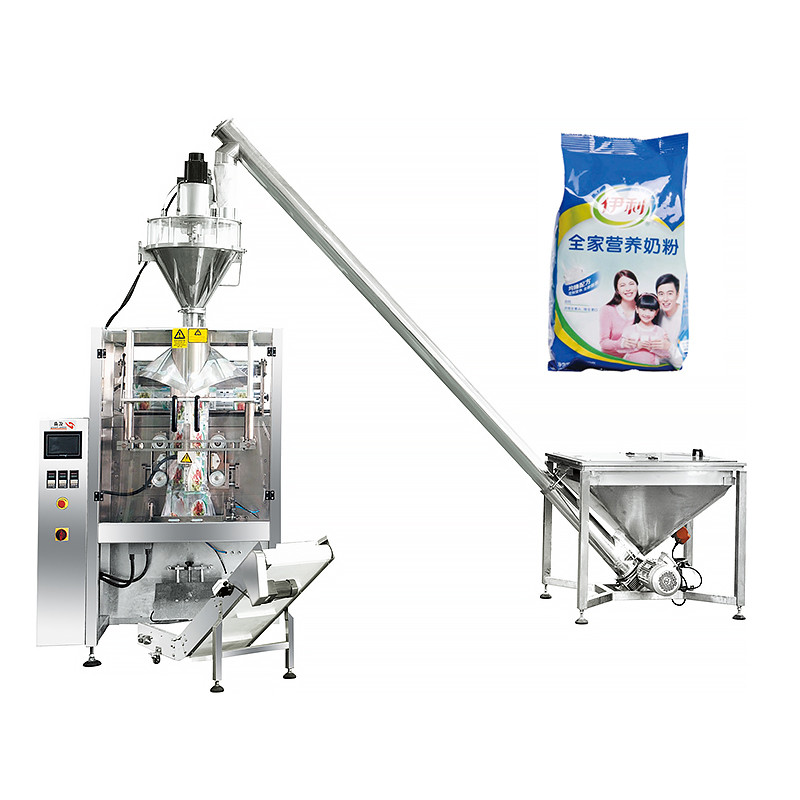

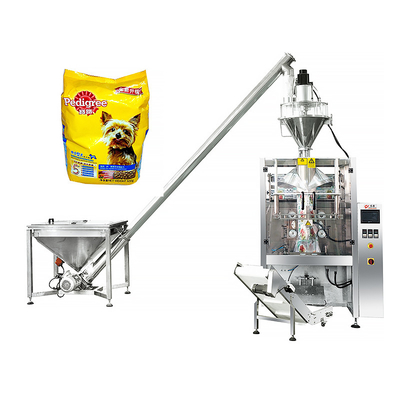

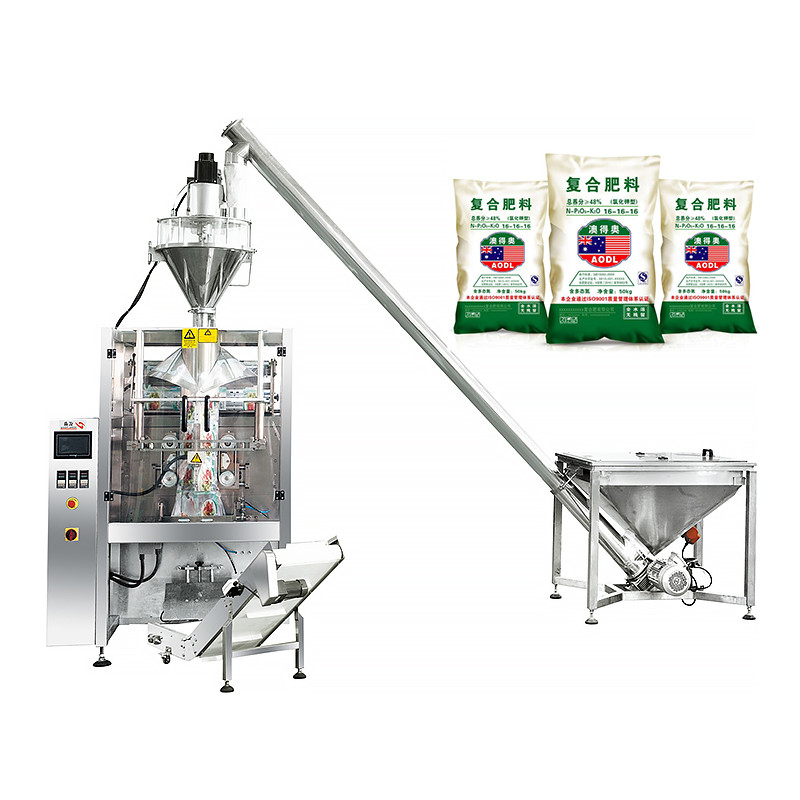

JS-520D/720D Automatic Powder Packing Machine With Auger Filler
Product Description
Model | JS-720D | JS-520D/420D398D/320D | JS-720A | |||||
Item | small type auger filler | large type auger filler | small type auger filler | large type auger filler | W:110-350mm | |||
Packing weight | 10-300g | 10-5000g | 10-300g | 10-2000g | L:100-420mm | |||
Packing speed | 10-60bags/min | 10-40bags/min | 10-70bags/min | 10-50bags/min | 10-60 bag/min | |||
Packing precision | ±0.01-0.1% | Max 4000ml | ||||||
Main power/voltager | 1KW/380V | 2.5KW/380V | 1KW/380V | 2.5KW/380V | 720mm | |||
Dinmension | (L)510*(W)585*(H)930mm | (L)600*(W)1250*(H)2000mm | (L)510*(W)585*(H)930mm | (L)600*(W)1250*(H)2000mm | 300L/min 0.8MPa | |||
The weight of switchboard | 100KG | 200KG | 100KG | 200KG | 4.0KW/220V 50-60Hz | |||
Technical advantage:
Product Application
Application:
The packing machine is mainly for spice powder, coffee powder, milk powder etc.
Bag type:making pillow bag, vertical gusset bag, hanging bag according to customer's different requirements.
This main packing machine can also be used to pack granules, pieces, liquid into small bags, by matching with weigher, or liquid pump.
Bag type:making pillow bag, vertical gusset bag, hanging bag according to customer's different requirements.
This main packing machine can also be used to pack granules, pieces, liquid into small bags, by matching with weigher, or liquid pump.
About Us
Certifications
Product packaging
FAQ
Q: Are you manufacturer? A: Yes, we are manufacturer with more than 10 year's experience. Q: Can you ship the machine to my address? A: Yes, we arrange to ship the machine by sea to your nearest port. Where you are east to do the import customs cleanrance. Q: About the machine voltage or power of machine? A: Usually in our country is 220v-50hz single phase or 380v-50hz 3 phase. If you have the special requirement, pls tell us. We will vetify the voltage according to your requirement. Q: How to install the machine? A: We can intrust the install the machine by vedio, email, picture etc. Q: Can you offer us the necessary paper to do the customs clearance? A: Yes, of course. We will send you the commercial invoice, packing list, bill of lading, insurance policy. Q: Where are you? Can we go to China and visit your factory? A: Yes, of course. We are in Zhengzhou, Henan, China. Welcome to our factory.
