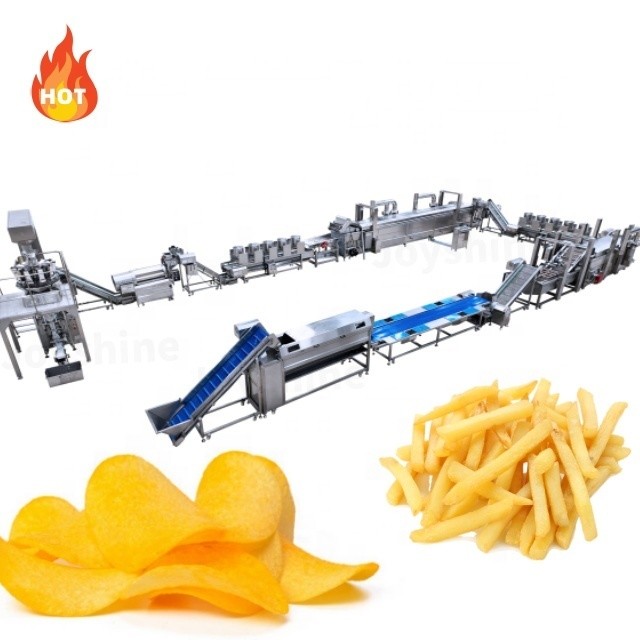

Customized Fully Automatic Potato Chips Making Machine for Potato Processing Industry
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Joyshine |
| Price | $13,000.00/sets 1-2 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | None | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Engine, Bearing, Gearbox |
| Voltage | 110v/220v/380v & Custom Made | Power | 10kw |
| Dimension(L*W*H) | 4000*1100*2200mm | Weight | 900 KG |
| Warranty | 2 Years | Application Fields | Vegetable Processing Plant, Seasoning Plant, Snack Food Factory, Frozen Food Factory, Beverage Factory, Potato Farm |
| Machinery Function | To Make Potatao Chips | French Fries | Raw Material | Fruit, Vegetables, Potato |
| Output Product Name | French Fries | Key Selling Points | High Productivity |
| Machinery | Potato French Fries Equipment | Machine Material | Food Grade 304 Stianless Steel |
| Heating Source For Blanching And Frying | Gas | Electricity | Diesel | Chips Thickness | 1-5mm Adjustable |
| French Fries Size | Custom Made | Potato Chips | French Fries Type | Frying Or Baking |
| Production Process | Custom Made | Plant Scale | Automatic Or Semi Automatic |
| Final Product | French Fries | Application | Potato Chips Processing Industry |
Product Description
Products Description
We are professional direct manufacturer for potato chips or french fries making machines in China.
We have different solutions for different demands:
1: Different machines for making potato chips or french fries
2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output and workflow can be customized
3: Semi automatic or fully automatic processing machines
4: Electricity or gas, diesel heating source for blanching and frying machine.
5: The size of french fries and the thickness of potato chips are adjustable.
6: For french fries line, we have special equipment to remove the unqualified fries.
7: All machines are made of SUS304, Schneider electrical components and Siemens brand motor.
8: With special designed fryer, quick heating and energy saving, enabled good performance
2024 New Customized Fully Automatic Chips Making Machine Potato Processing Machine Line Frozen French Fries Machinery

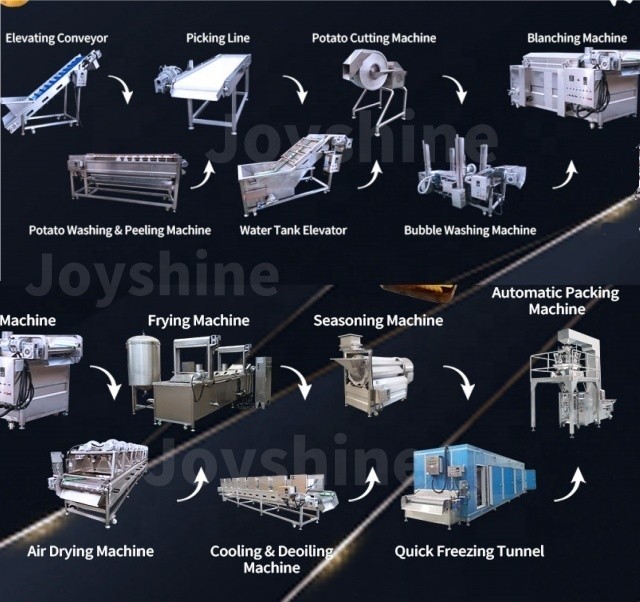

Fully Automatic Frozen French Fries Production Process:
No. | Machine Name | Function |
1 | PVC Elevator | For elevating and conveying fresh potatoes into the next washing peeling machine |
2 | Potato Washing and Peeling Machine | Thoroughly washing and peeling the potatoes |
3 | Sorting Conveyor | For manually disposing the uncleaned places and selecting the defective potatoes |
4 | Fries Cutting Machine | Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm |
5 | Water Tank Elevator | water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step |
6 | Fries Sorting Machine | Automatically picking up the small pieces fries |
7 | Bubble Washing Machine | Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch |
8 | Blanching Machine | Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries |
9 | Vibration Dewatering Machine | Through vibration to remove the surface water and also to transport the fries uniformly to the next machine |
10 | Air Drying Machine | Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon |
11 | Elevating Conveyor | For elevating and conveying the fries into next fryer machine |
12 | Continuous Frying Machine | For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life |
13 | Vibration Deoiling Machine | Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine |
14 | Pre-cooling Machine | Through high pressure wind blowing for pre-cooling and deoiling the fries |
15 | Freezing Machine | Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF |
16 | Automatic Packing Machine | For packing the finished frozen french fries |
Detailed Description
PVC Elevator for Fresh Potatoes
Potato Washing Peeling Machine
Unqualitied Potato Sorting Conveyor
Potato Cutter
fries cutting chips slicing
Water Tank Elevator
Fries Sorting Machine
Bubble Washing Machine
Blanching Machine
Vibration Dewatering Machine
Air Drying Machine
Elevator Conveyor
Continuous Fryer Machine
Vibration Deoiling Machine
Air Cooling Machine
IQF Freezing Tunnel
Automatic Weighing and Packing Machine
Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!
