Electric Heating 1 KG Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Joyshine |
| Price | $6,600.00/sets 1-2 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location | None | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | New Product 2023 |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Gearbox |
| Voltage | 220v, 380v | Power | 1500w |
| Dimension(L*W*H) | 4000*1100*2200mm | Weight | 1 KG |
| Warranty | 1 Year | Application Fields | Flour Mill, Seasoning Plant, Fruit Processing Plant, Snack Food Factory, Frozen Food Factory |
| Machinery Function | Banana Chips Making Machines | Raw Material | Fruit, Vegetables, Potato |
| Output Product Name | Banana Chips Making Machines | Key Selling Points | Easy To Operate |
| Name | Banana Chips Making Machines | Material | 304 Stainless Steel |
| Heating Method | Electric Heating | Type | Semi-automatic |
| Application | Snack Food Industry | Capacity | 25 Kg/h |
| Final Products | French Fries, Potato Chips | Package | Wooden Case Or Packaged In Container Directly |
| Custom | Voltage, Capacity, Heating Method | Motor | Siemens Or Others |
Product Description
Why Choose Us
Products Description
Joyshine Automatic Potato Chips Production Line Frozen French Fries Making Machine
Fully Automatic Frozen French Fries Production Process: | ||||||||||
No. | Machine Name | Quantity | Power | Dimension | Material | |||||
1 | PU Belt Elevating Conveyor | 1 set | 0.75kw | 2400*700*1600mm | SUS304 | |||||
2 | Potato Washing & Peeling Machine | 1 set | 4.37kw | 3400*1000*1400mm | SUS304 | |||||
3 | Picking Line | 1 set | 0.75kw | 3000*700*900mm | SUS304 | |||||
4 | French Fries Cutting Machine | 1 set | 1.5kw | 950*800*950mm | SUS304 | |||||
5 | Water Tank Elevator | 1 set | 0.75kw | 2200*800*1600mm | SUS304 | |||||
6 | Fries Sorting Machine | 1 set | 2kw | 2400*1000*1300mm | SUS304 | |||||
7 | Bubble Washing Machine | 1 set | 6kw | 4000*1200*1400mm | SUS304 | |||||
8 | Continuous Blanching Machine | 1 set | 140kw | 5000*1200*1400mm | SUS304 | |||||
9 | Vibrating Dewatering Machine | 1 set | 0.36kw | 1800*1000*1300mm | SUS304 | |||||
10 | Air Drying Machine | 1 set | 7.5kw | 4000*1000*1600mm | SUS304 | |||||
11 | Mesh Belt Elevating Conveyor | 1 set | 0.75kw | 2000*800*1300mm | SUS304 | |||||
12 | Continuous Frying Machine | 1 set | 200kw | 6000*1200*1400mm | SUS304 | |||||
13 | Vibrating Deoiling Machine | 1 set | 0.36kw | 1800*1000*1300mm | SUS304 | |||||
14 | Cooling & Deoiling Machine | 1 set | 7.5kw | 4000*1000*1600mm | SUS304 | |||||
15 | Mesh Belt Elevating Conveyor | 1 set | 0.75kw | 2000*800*1300mm | SUS304 | |||||
16 | IQF Freezer Tunnel | 1 set | 90kw | 11500*2200*2200mm | SUS304 | |||||
17 | Elevating Conveyor | 1 set | 1.1kw | 3000*500*1400mm | SUS304 | |||||
18 | Automatic Packing Machine | 1 set | 6.7kw | 5000*2000*3400mm | SUS304 | |||||

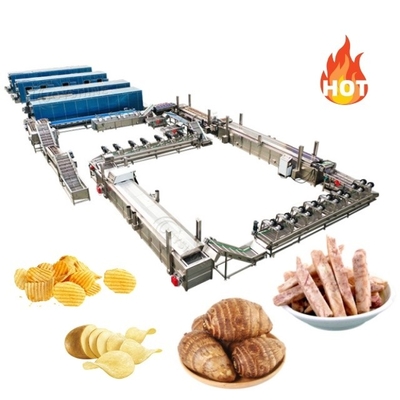

Fully-Automatic French Fries & Potato Chips Production Line
(Finished capacity, Heating source, Production process all can custom made.)
Detailed Description
PU Belt Elevating Conveyor
1.For elevating and conveying fresh potatoes into the next washing peeling machine.
Potato Washing & Peeling Machine
1.Brush and round drum rollers to peel the potatoes thoroughly. 2.Spraying system to clean the potatoes. 3.Spiral design to make sure automatic discharging.
4.Thoroughly washing and peeling the potatoes
Picking Line
1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
French Fries Cutting Machine
1.Good cutting effect, uniform size.
2.Cutting the potatoes into fries.
3.Custom blade for different sizes, from 7*7 to l2*12mm.
Water Tank Elvator
1.Water as buffer to prevent fries breakage, and simply removing starch. 2.Meanwhile elevating fries into next step.
Bubble Washing Machine
1.Through high pressure water flow and water bubbles to impact and scrub the fries to wash off the starch.
2.This machine is widely used forcleaning fruits and vegetables,etc.
Continuous Blanching Machine
1.Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries.
2.Inhibit enzyme activity, avoid oxidation,
fix color, need additives, citric acid, etc.
Air Drying Machine
1.Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon.
2.Strong wind, remove moisture.Flip the mesh belt to dry both sides evenly.
3.The height of the fan can be adjusted.
Continuous Frying Machine
1.For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life.
2.Half-fried French fries, also suitable for deep-frying all kinds of snacks PLC control, adjustable temperature.
Seasoning Machine
1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Quick Freezing Tunnel
1.Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt.
2.Frozen products and prevent adhesion, achieve IQF.
Automatic Packing Machine
1.For packing the finished frozen french fries.
2.10 heads, 14 heads.
Different models for your requirements.
We can produce machines to make Potato chips, French fries, Banana chips/Plantain chips.
Packing & Delivery
Shipping by sea or railway of LCL and FCL.
About Us
We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.

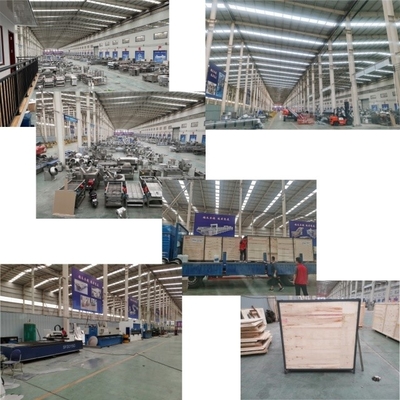

Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Certifications
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
FAQ
Heating method | Electricity heating or Gas heating. | ||||||
Machines' Material | Food grade 304 stainless steel. | ||||||
Voltage | Customize according to your city's voltage | ||||||
Payment Tems | T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChat Pay. | ||||||
Transportation | Shipping by sea and railway. | ||||||
Warranty | 2 years | ||||||
OEM | Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc. | ||||||
